| Drawing No. | Line Density(kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-046 | 8.5 | 120mm | Chalco-097 | 18 | 175mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-Y71a | 8.3 | 260mm | Chalco-Y71b | 7.6 | 110mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

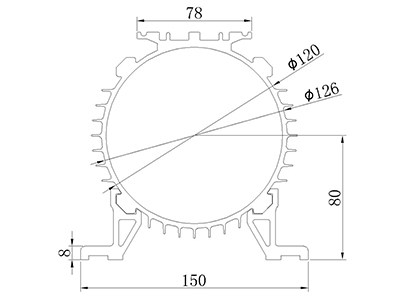

| Chalco-Y80a | 6.3 | 120mm | Chalco-Y80b | 9 | 120 |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-Y90a | 7.51 | 130mm | Chalco-Y90b | 11.2 | 130mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-Y100a | 10.2 | 155mm | Chalco-y100b | 14.1 | 155mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-Y112a | 11.54 | 175mm | Chalco-Y112b | 16.38 | 175mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

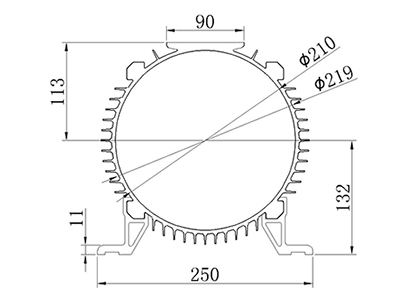

| Chalco-LST086a | 16 | 210mm | Chalco-LST086b | 21 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-Y132a | 15.42 | 210mm | Chalco-Y132b | 20.48 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

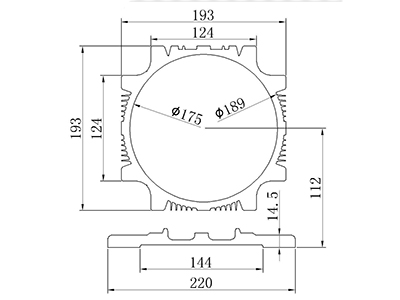

| Chalco-LST011 | 21.5 | 175mm | Chalco-LST015 | 21.8 | 189mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

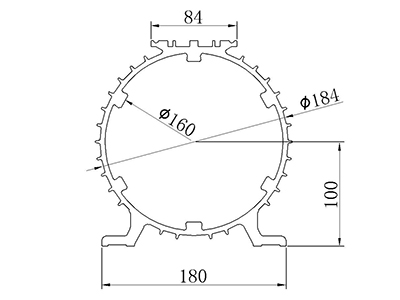

| Chalco-LST016 | 15.2 | 160mm | Chalco-LST019 | 5.55 | 110mm |
 |
 |
||||
| Drawing No. | Line Density(kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

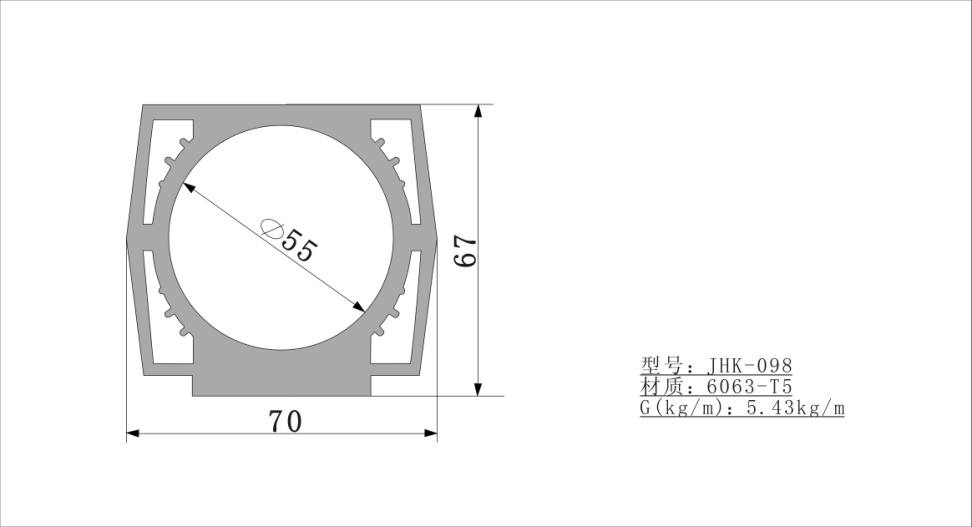

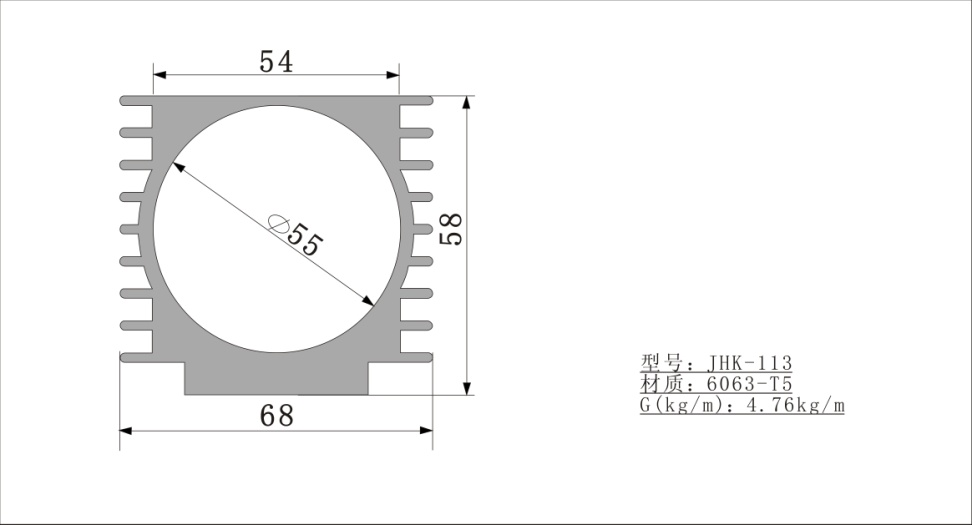

| Chalco-J098 | 5.43 | 55mm | Chalco-J113 | 4.76 | 55mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

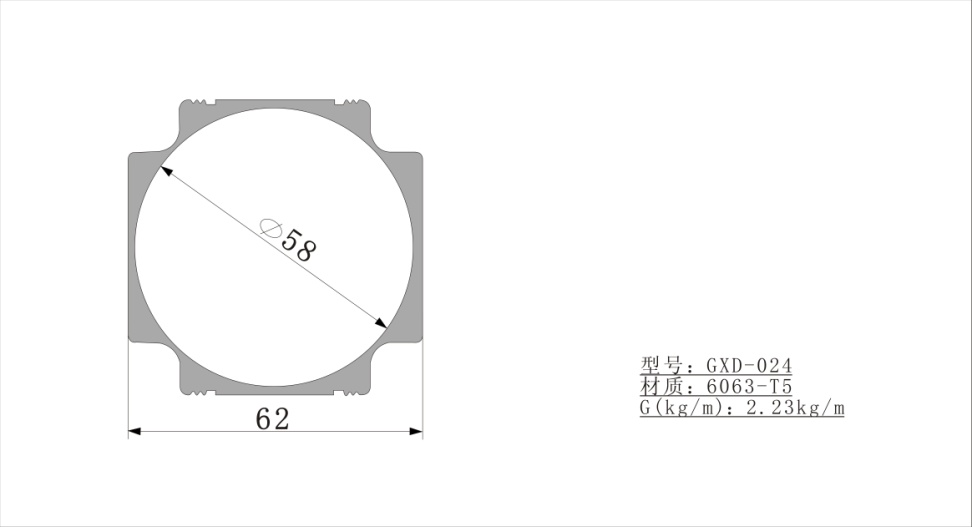

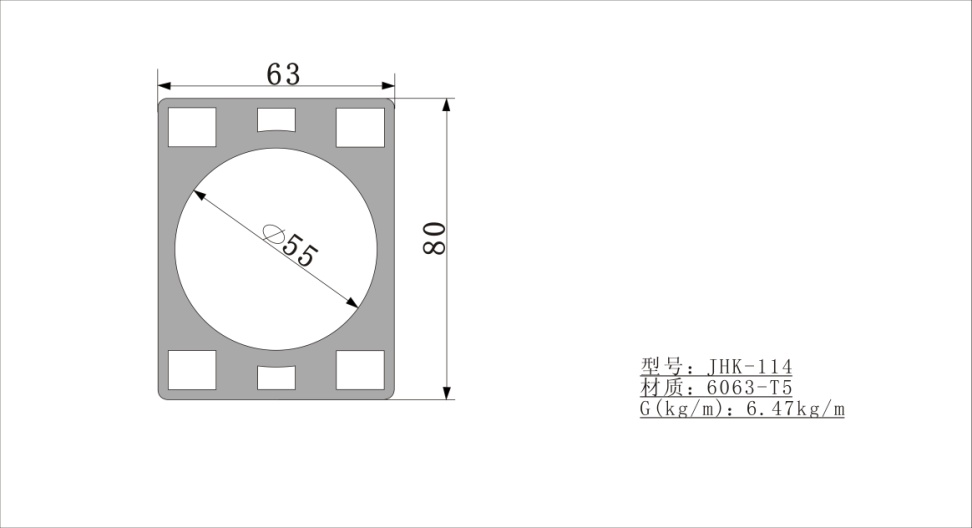

| Chalco-J114; | 6.47 | 55mm | Chalco-G024 | 2.23 | 58mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

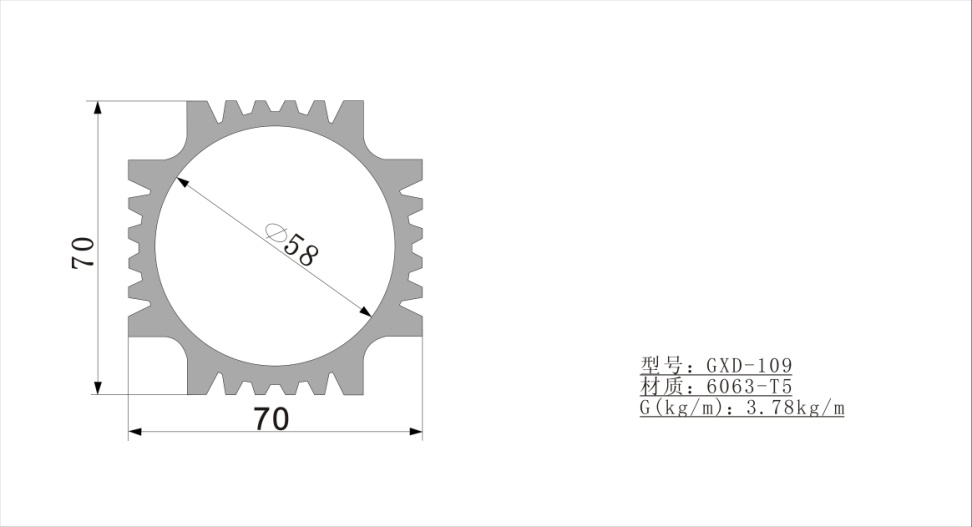

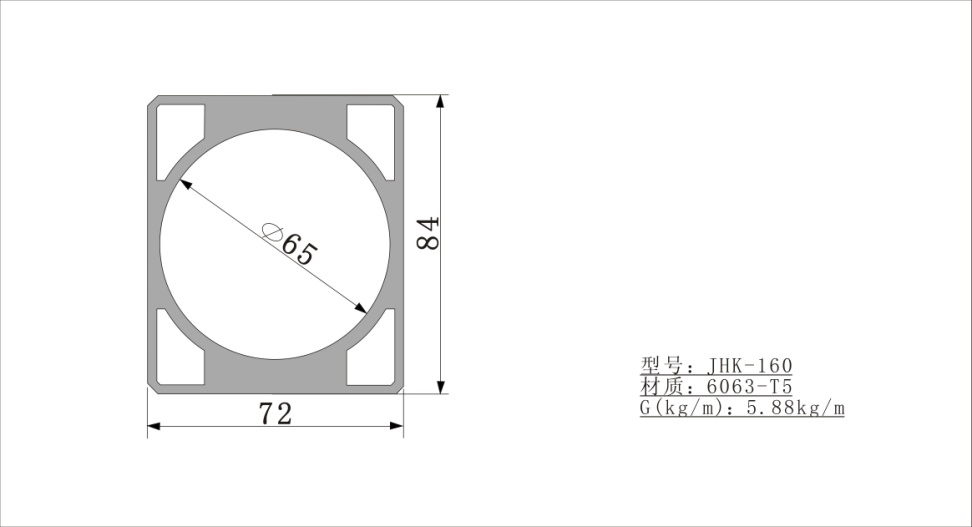

| Chalco-G109 | 3.78 | 58mm | Chalco-J160 | 5.88 | 65mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

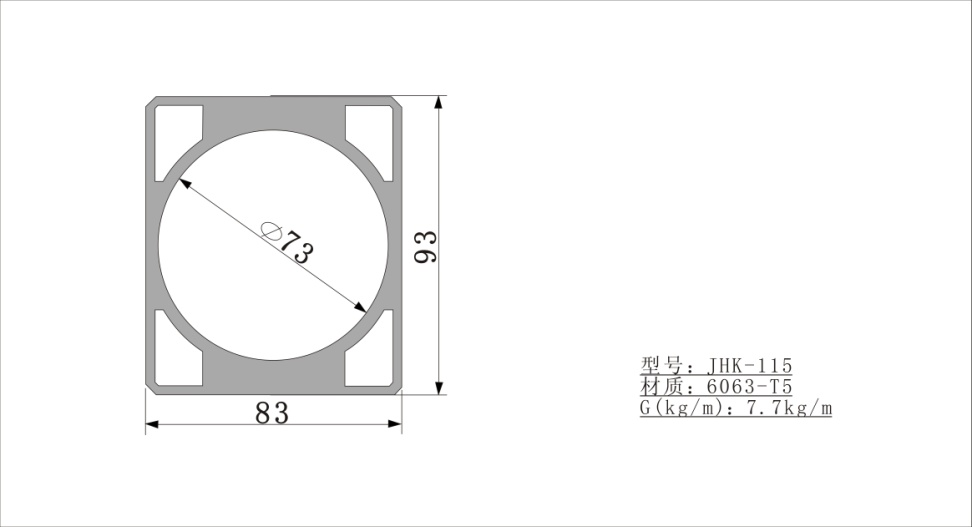

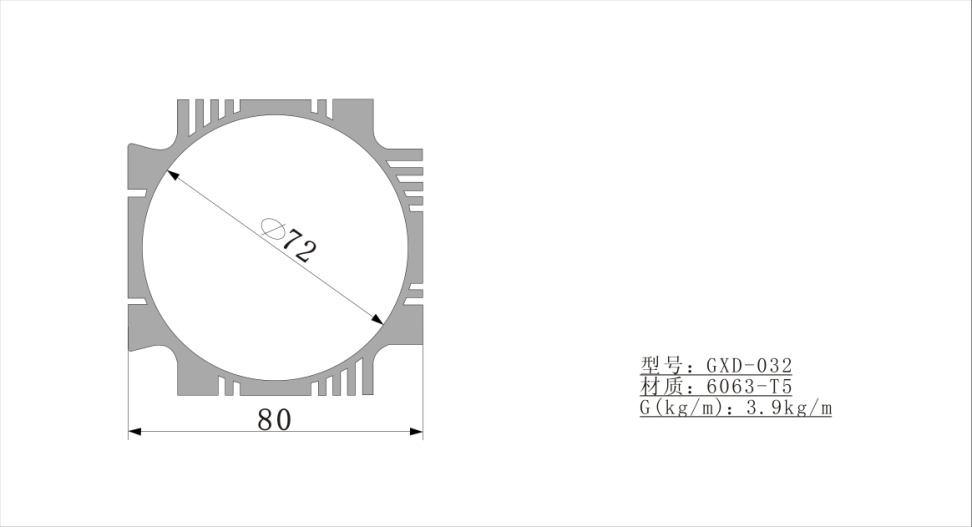

| Chalco-G032 | 3.9 | 72mm | Chalco-J115 | 7.7 | 73mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

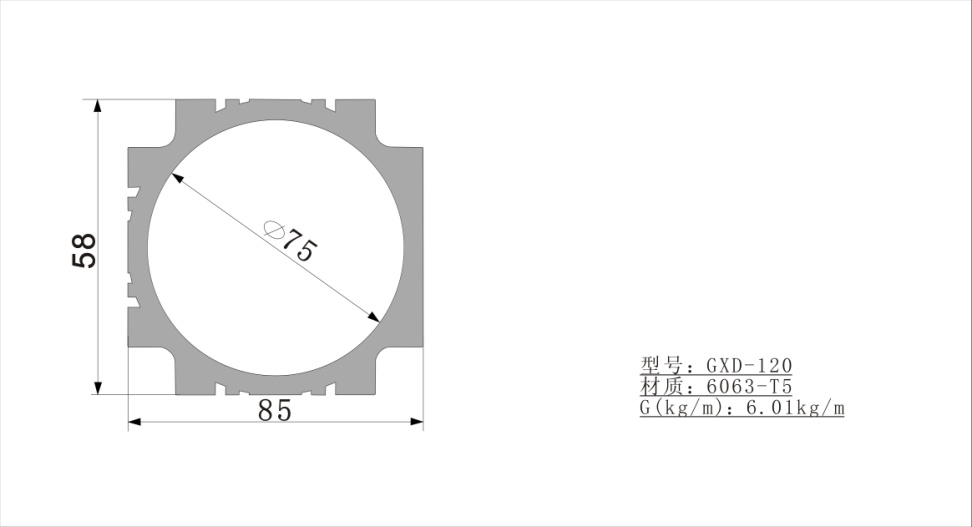

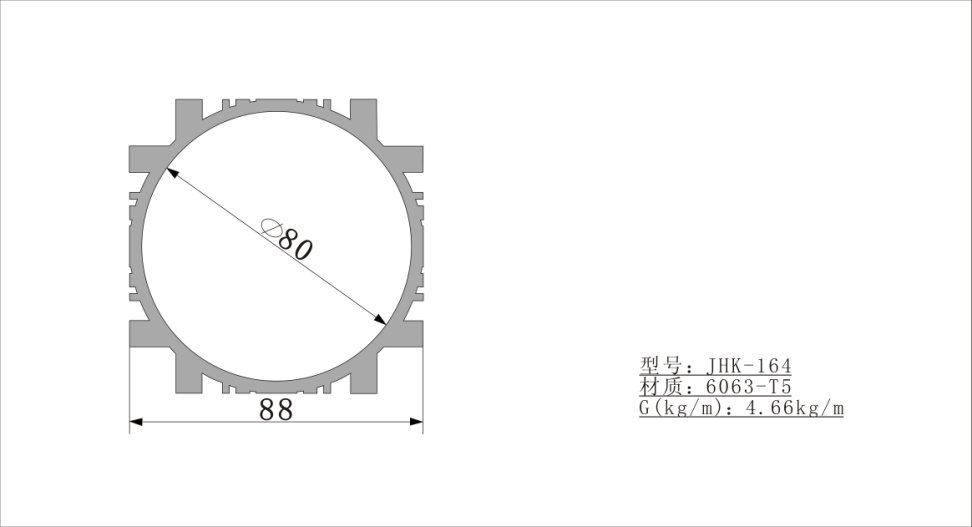

| Chalco-G120 | 6.01 | 75mm | Chalco-J164 | 4.66 | 80mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

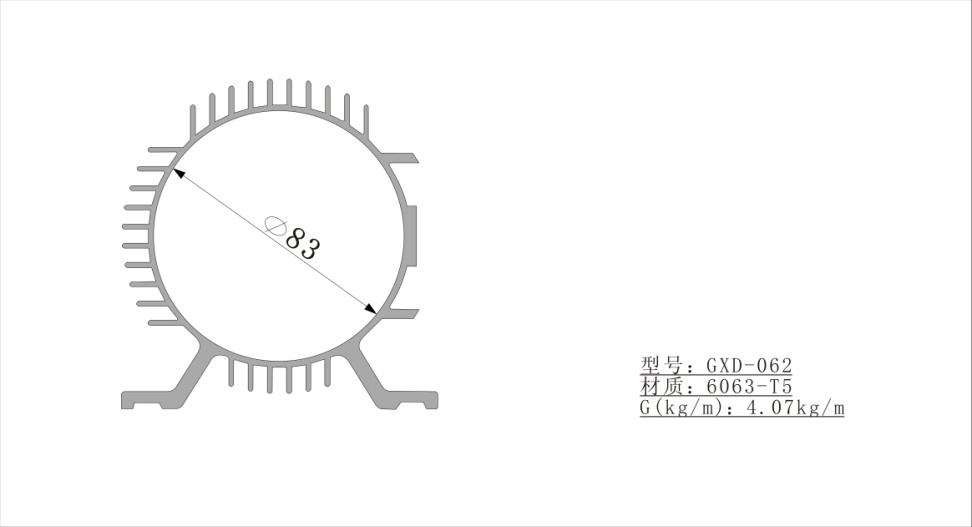

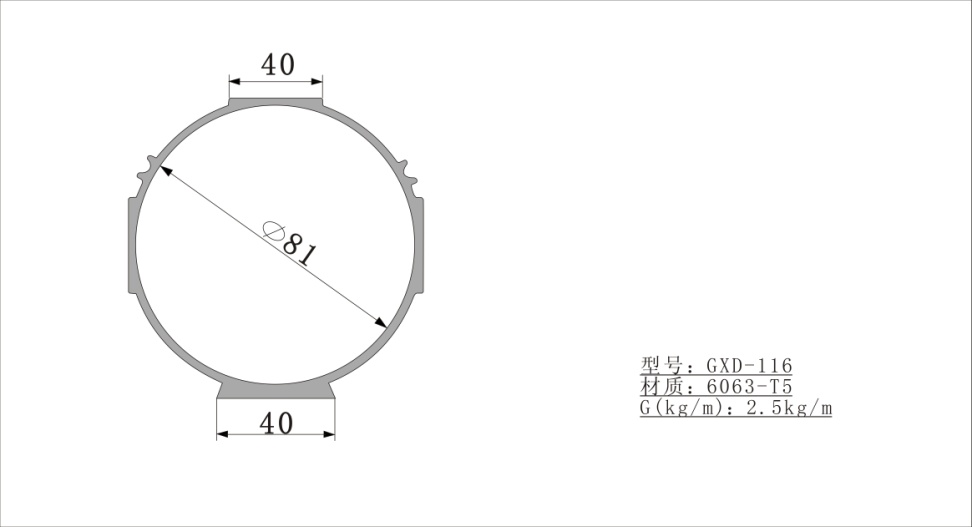

| Chalco-G116 | 2.5 | 81mm | Chalco-G062 | 4.07 | 83mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

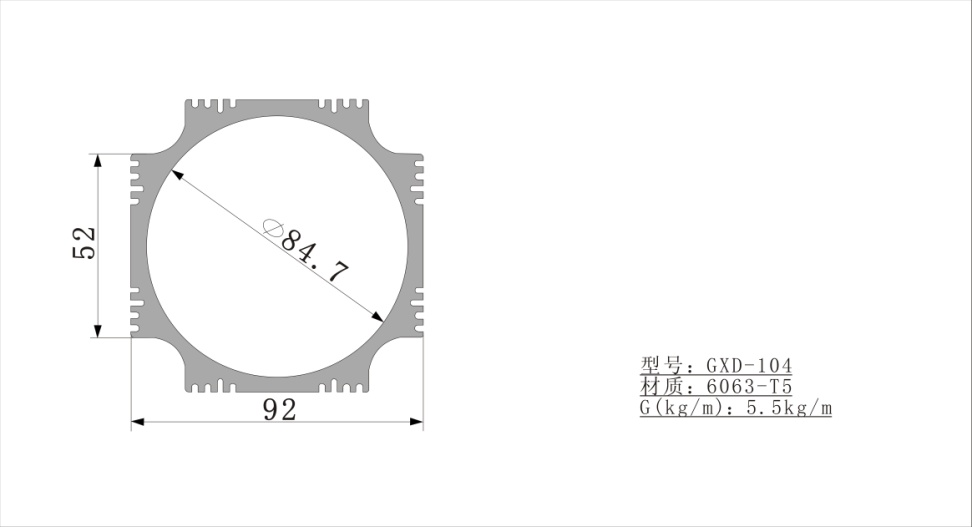

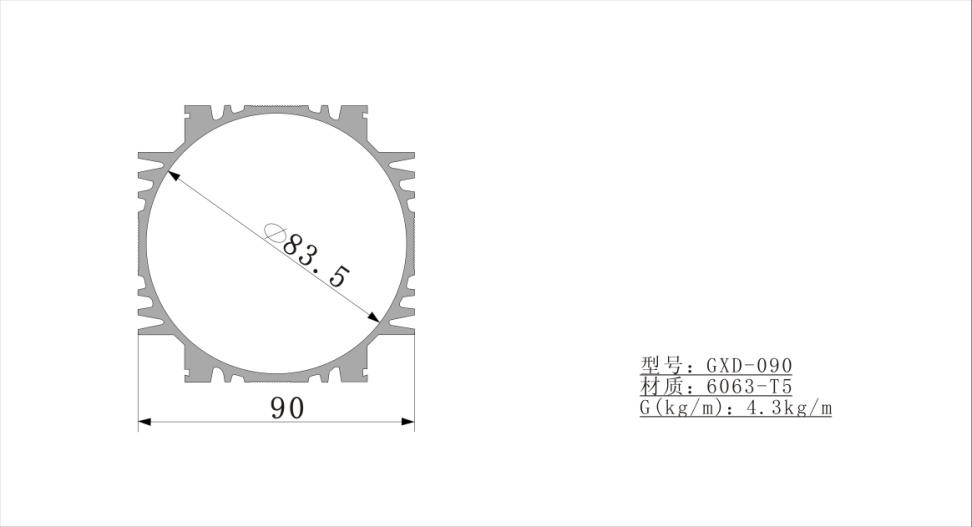

| Chalco-G090 | 4.3 | 83.5mm | Chalco-G104 | 5.5 | 84.7mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

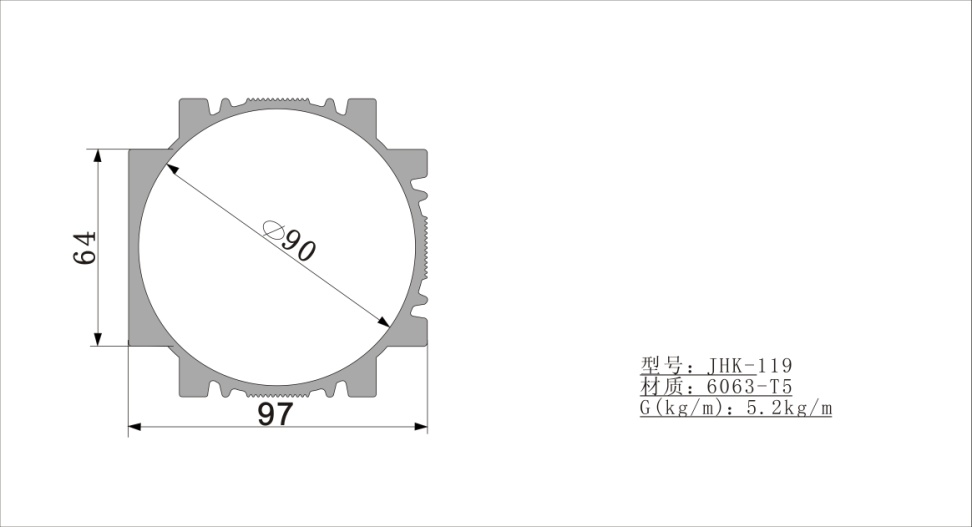

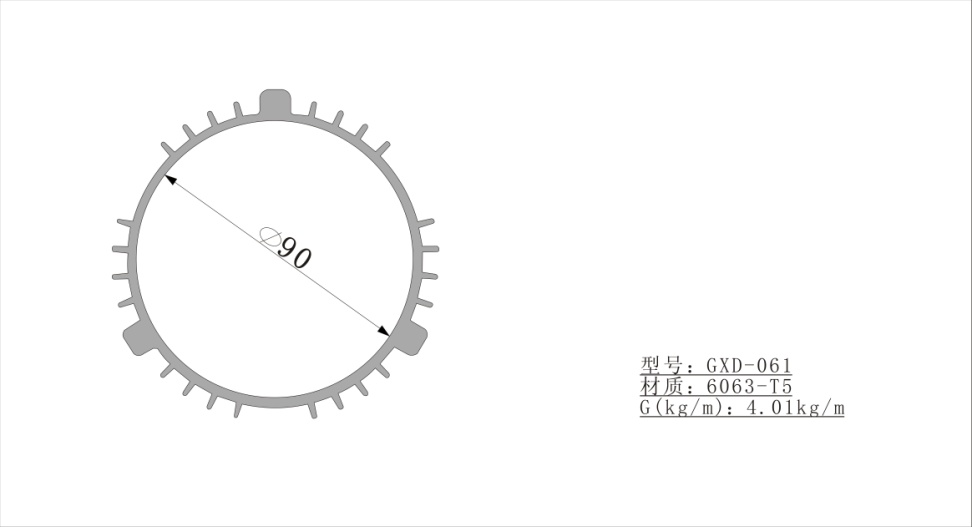

| Chalco-G061 | 4.01 | 90mm | Chalco-J119 | 5.2 | 90mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

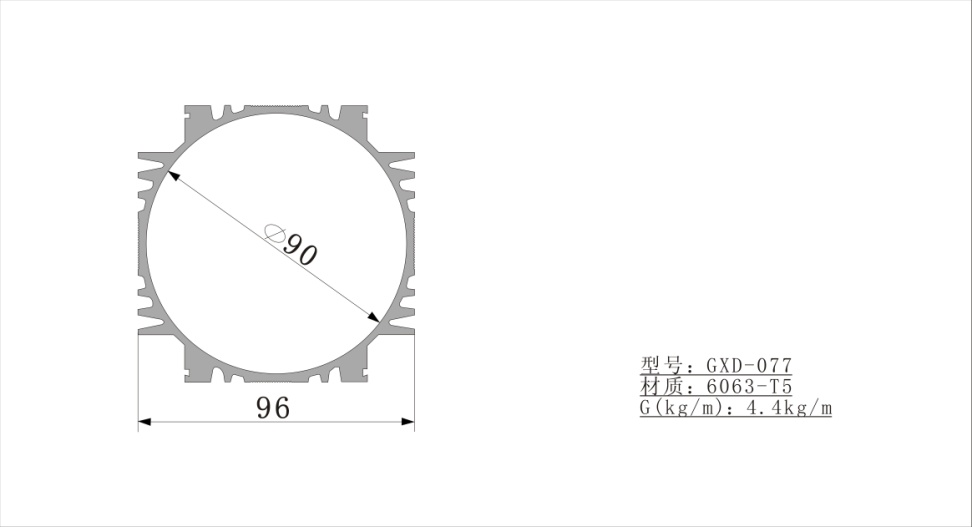

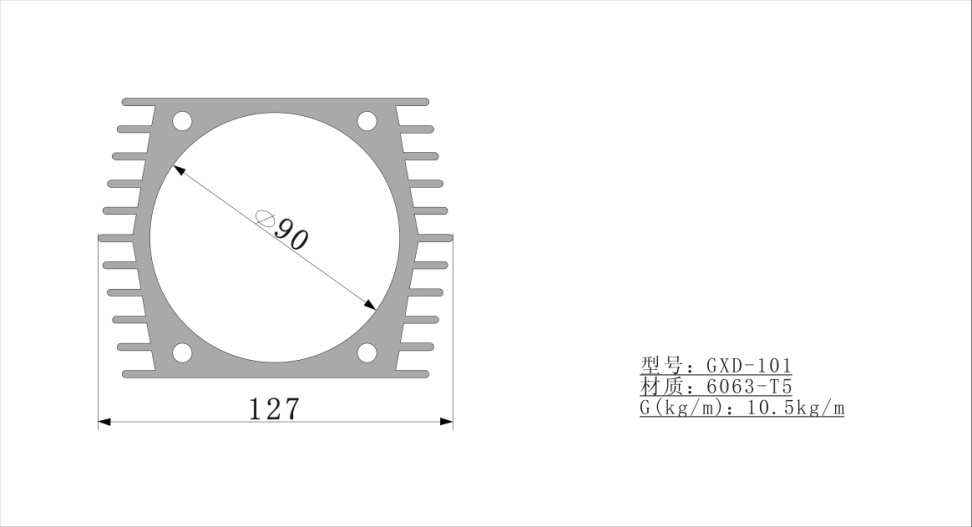

| Chalco-G101 | 10.5 | 90mm | Chalco-G077 | 4.4 | 90mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

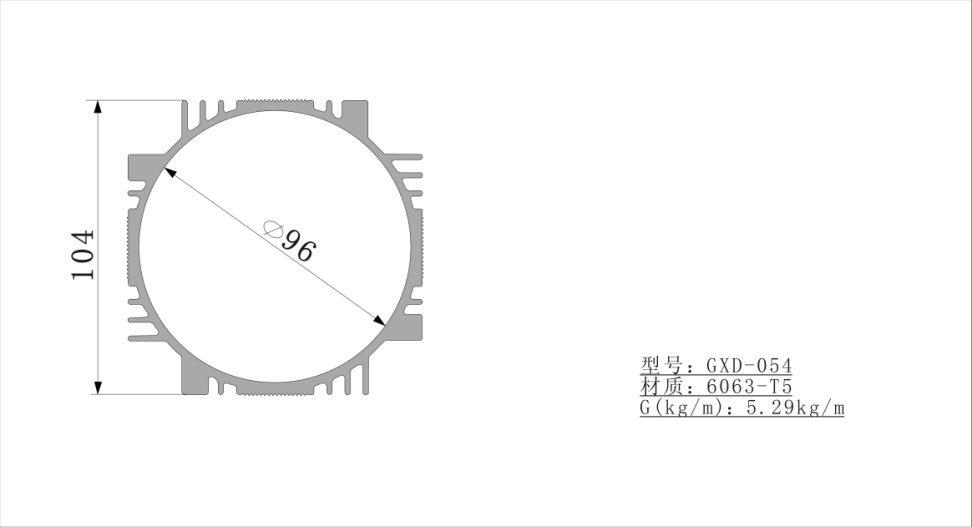

| Chalco-G053 | 4.28/0.67 | 96mm | Chalco-G054 | 5.29 | 96mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

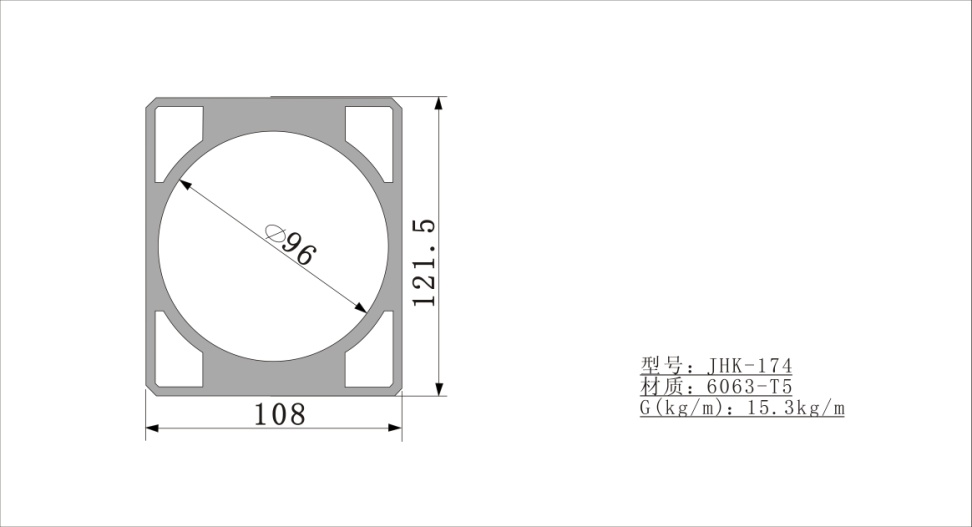

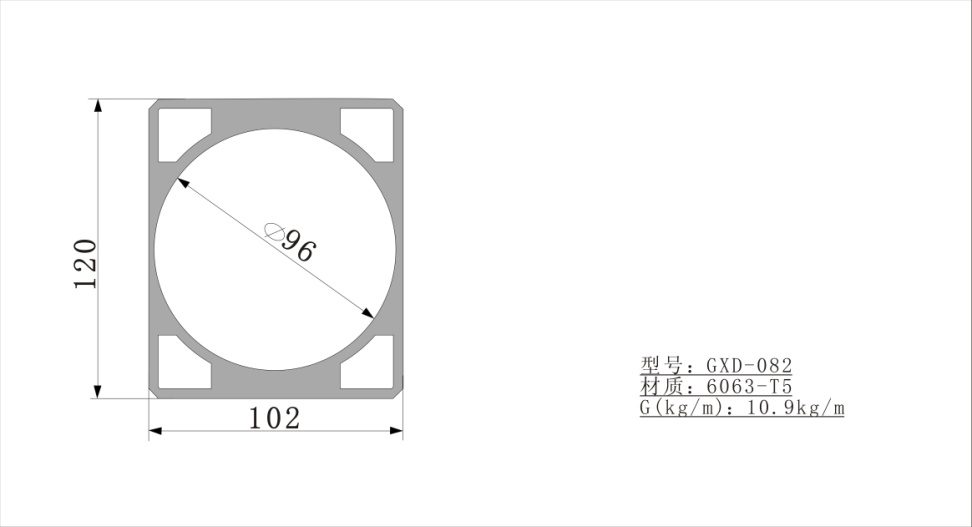

| Chalco-J174 | 15.3 | 96mm | Chalco-G082 | 10.9 | 96mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

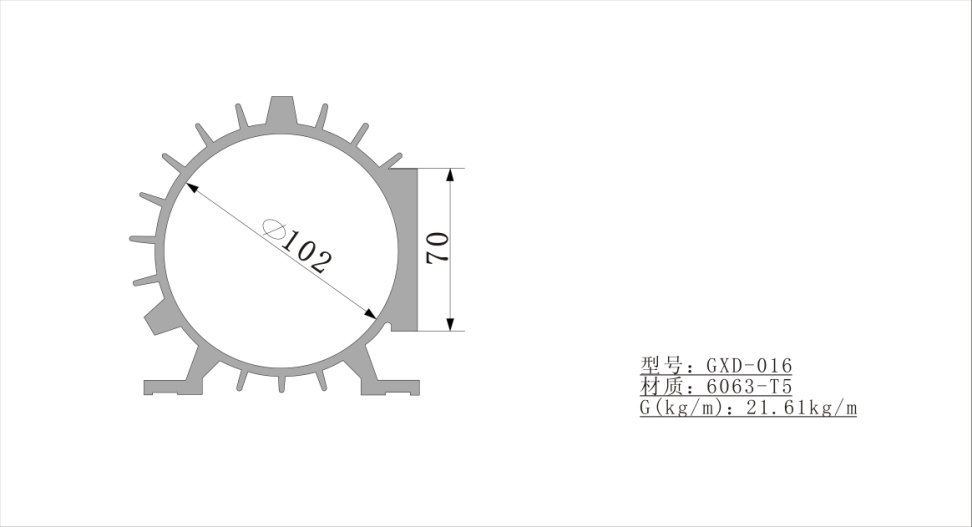

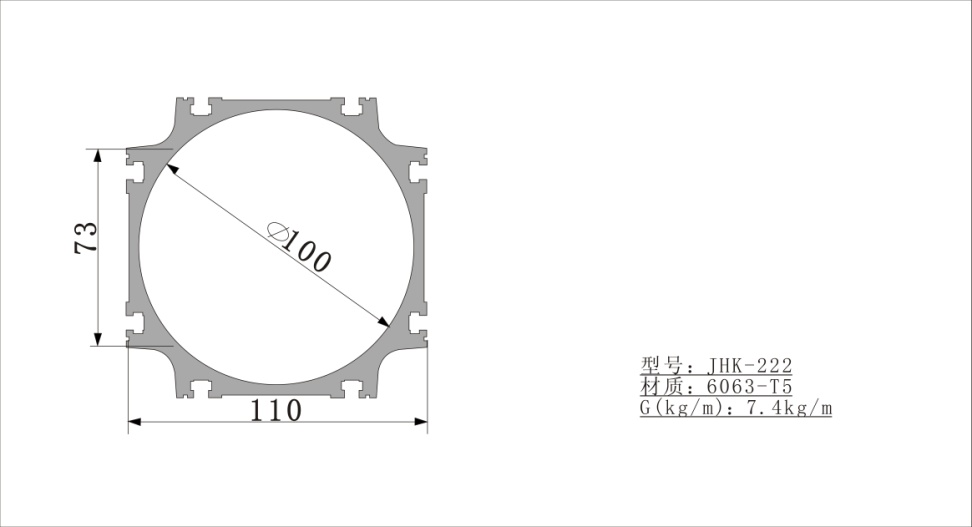

| Chalco-J222 | 7.4 | 100 | Chalco-G016 | 21.61 | 102mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

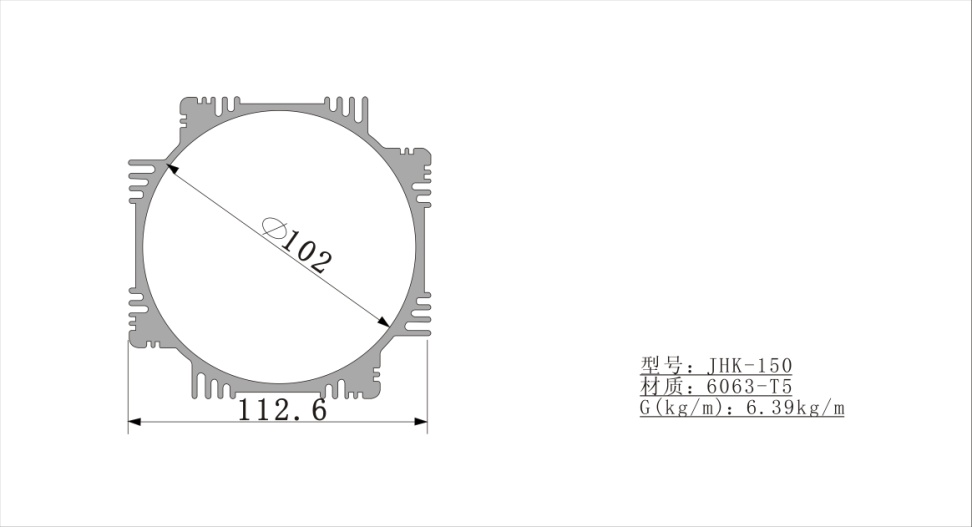

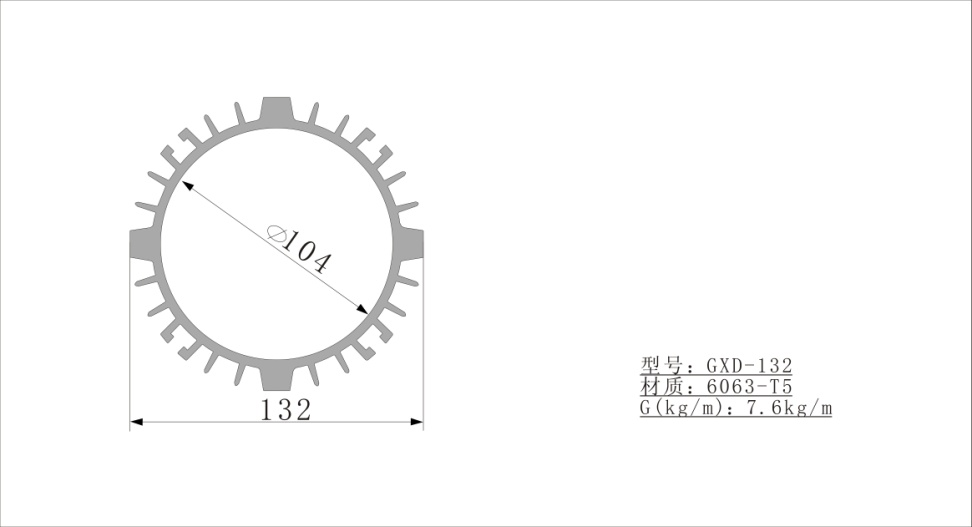

| Chalco-G132 | 7.6 | 104mm | Chalco-J150 | 6.39 | 102mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

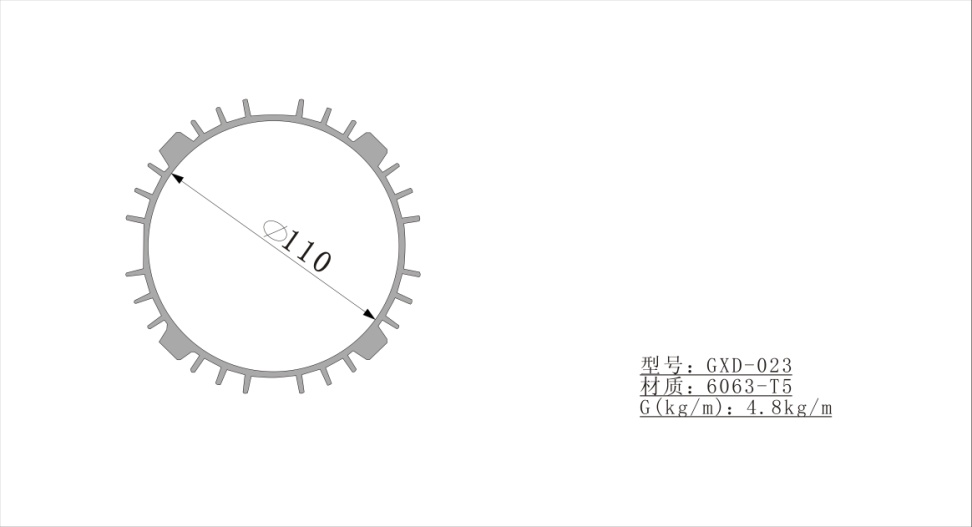

| Chalco-G095 | 6.01 | 108mm | Chalco-G023 | 4.8 | 110mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

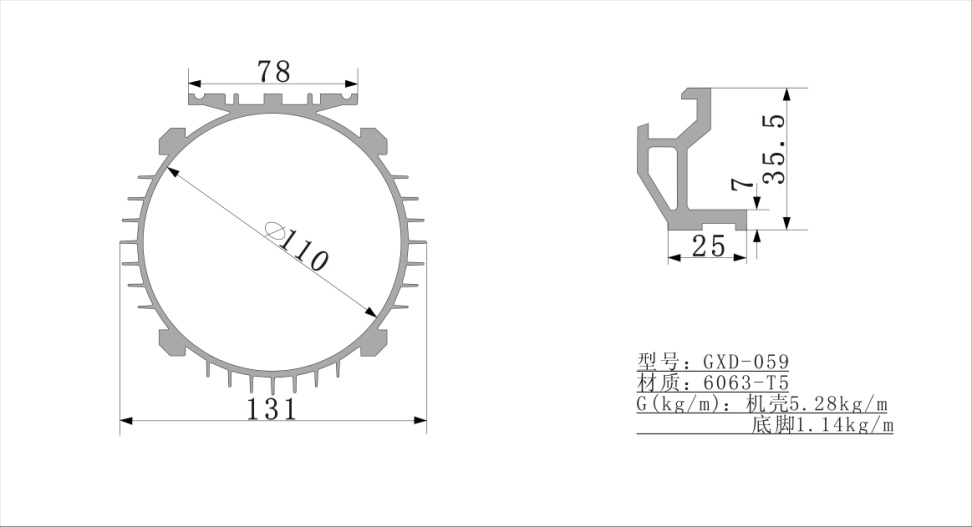

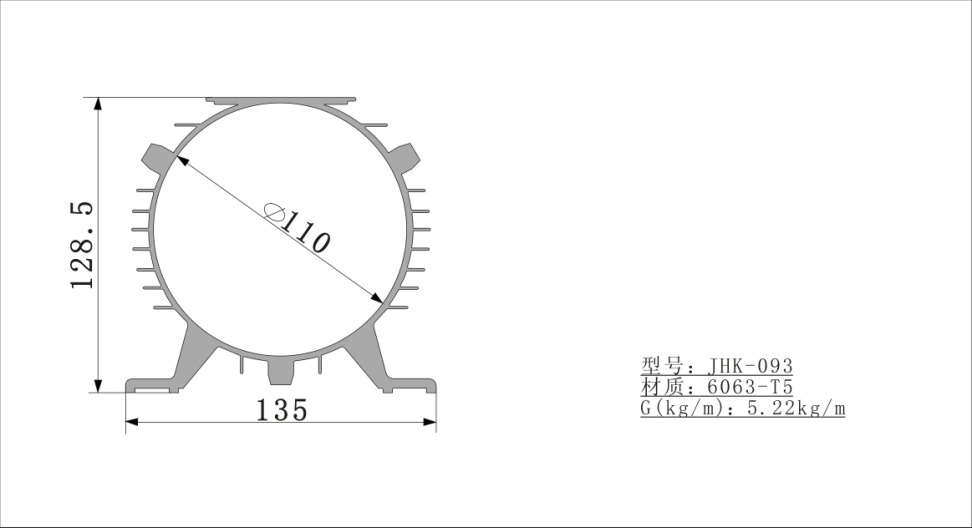

| Chalco-G059 | 5.28/1.14 | 110mm | Chalco-J093 | 5.22 | 110 |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

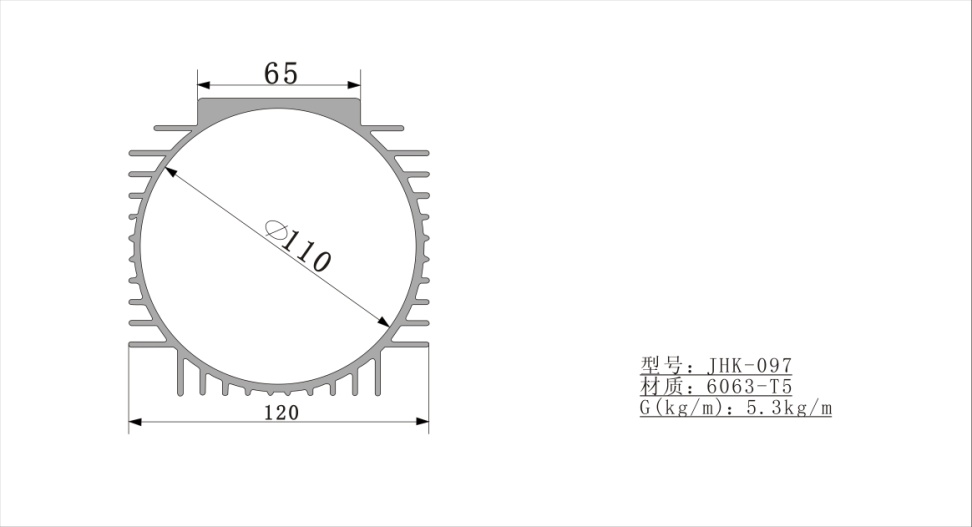

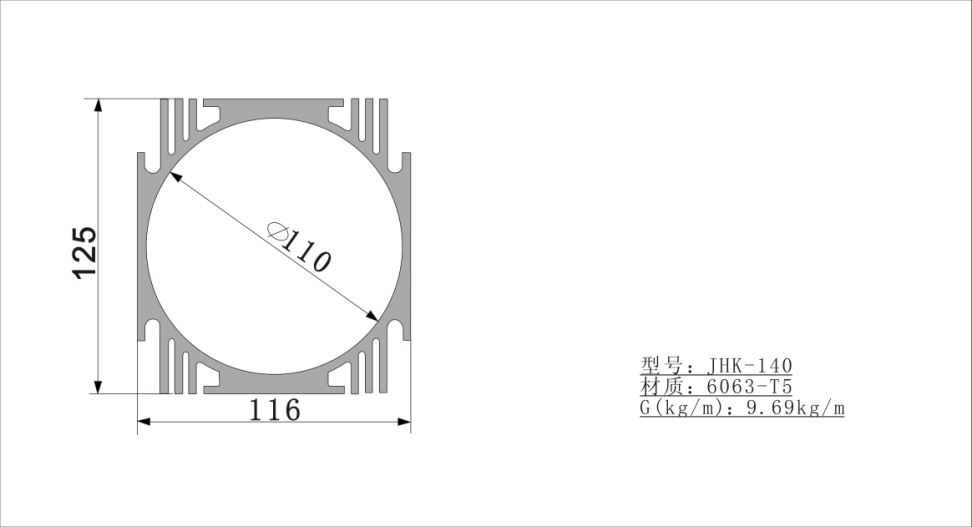

| Chalco-J097 | 5.3 | 110mm | Chalco-J140 | 9.69 | 110mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

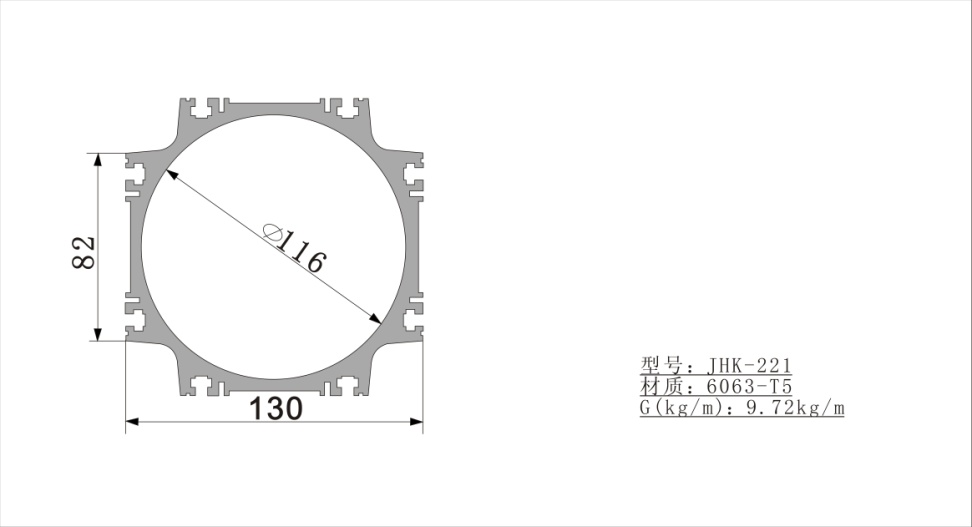

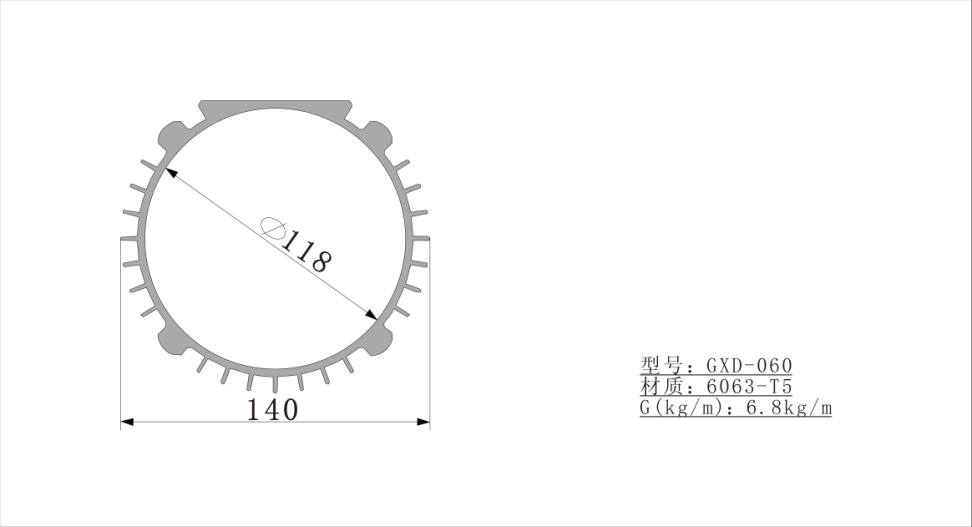

| Chalco-J221 | 9.72 | 116mm | Chalco-G060 | 6.8 | 118mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

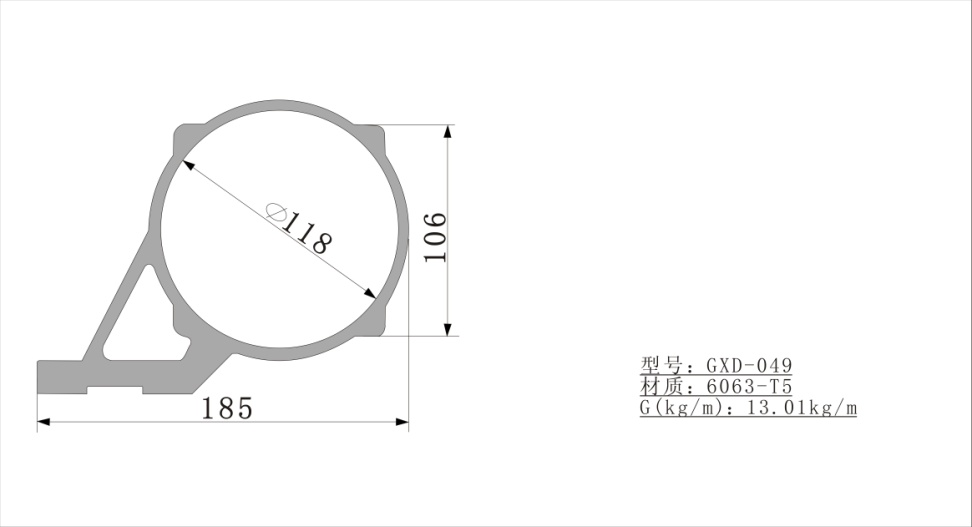

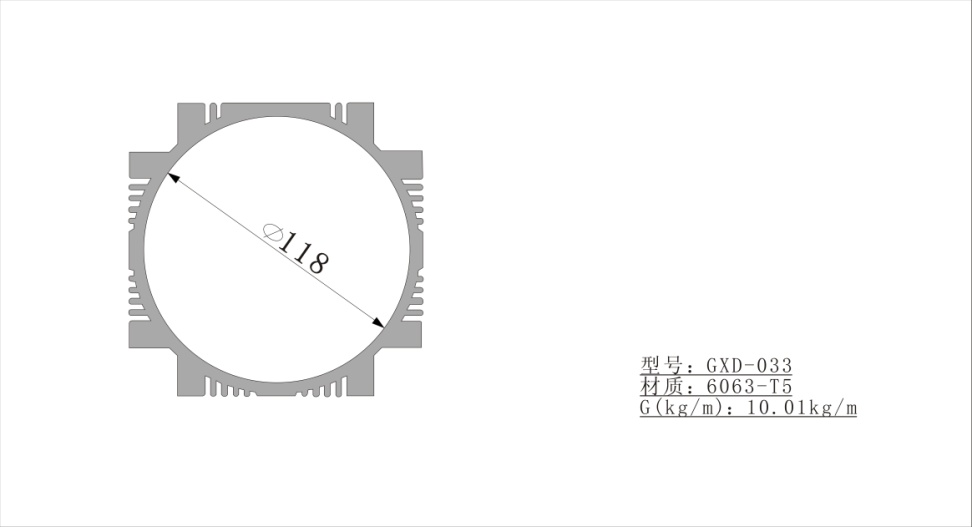

| Chalco-G033 | 10.01 | 118 | Chalco-G049 | 13.01 | 118mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

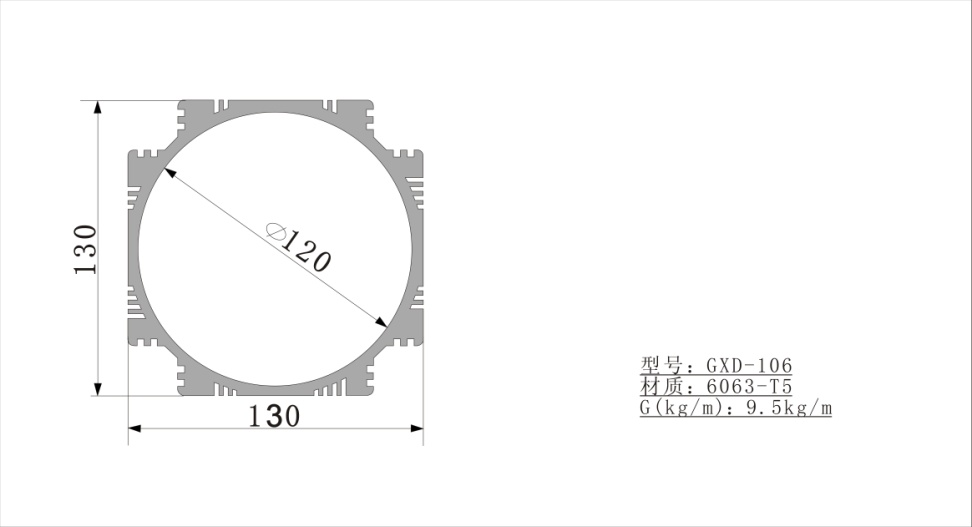

| Chalco-G072 | 9.3 | 120mm | Chalco-G106 | 9.5 | 120mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

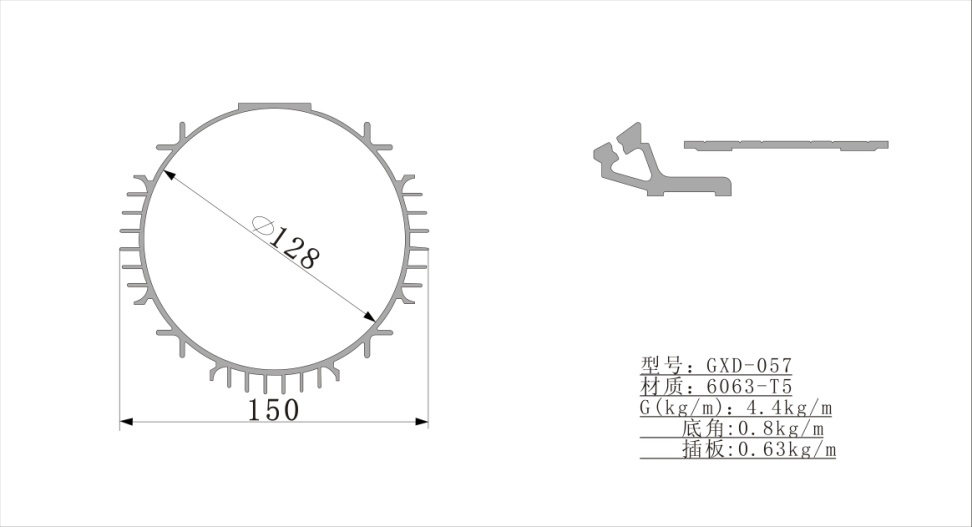

| Chalco-G057 |
4.4 0.8 0.63 |

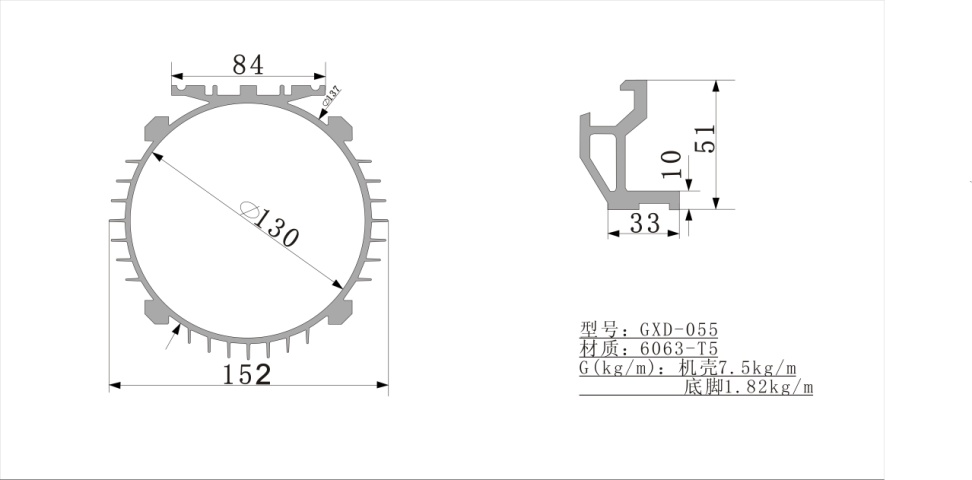

128mm | Chalco-G055 | 7.5/1.82 | 128mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

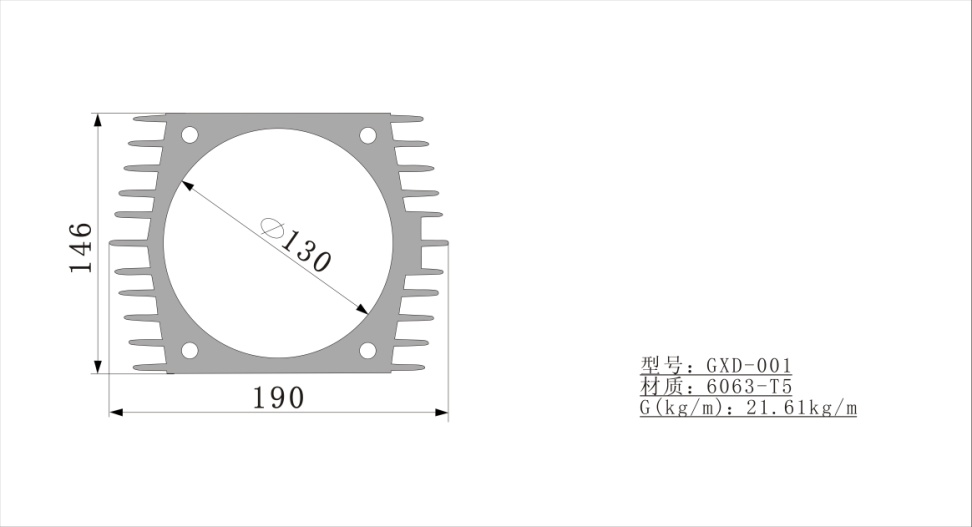

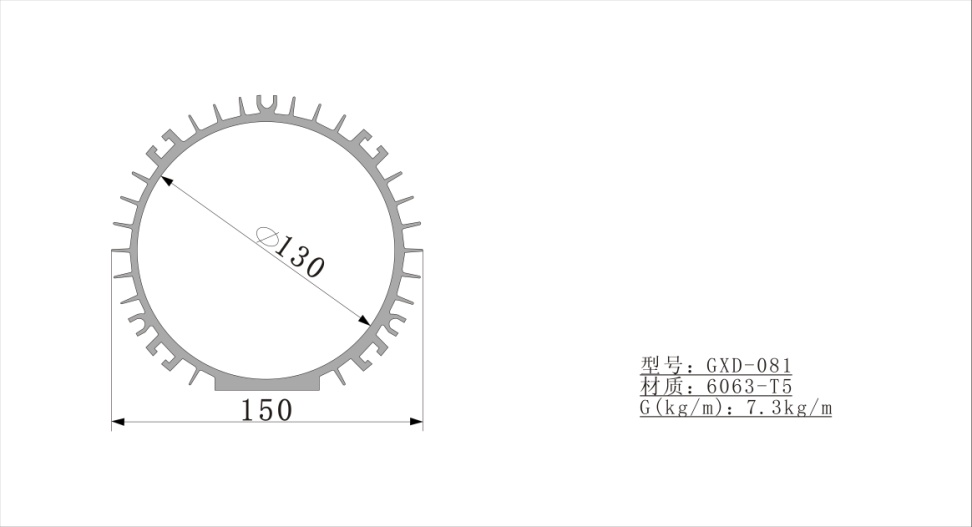

| Chalco-G081 | 7.3 | 130mm | Chalco-G001 | 21.61 | 130mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

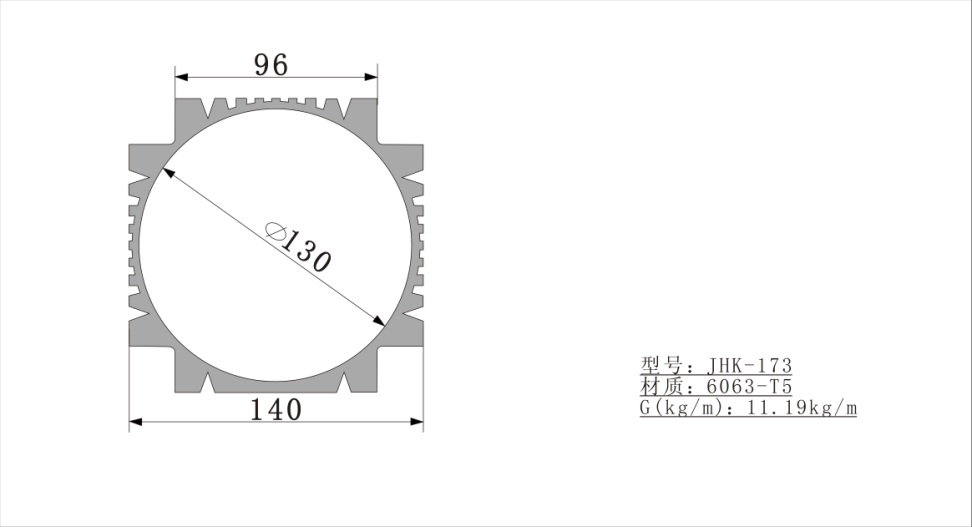

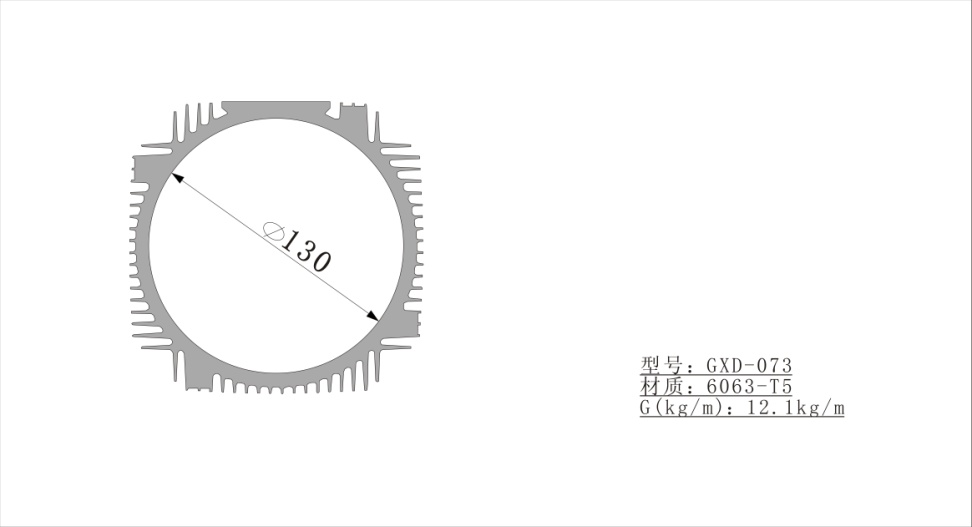

| Chalco-G073 | 12.1 | 130mm | Chalco-G173 | 11.19 | 130mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

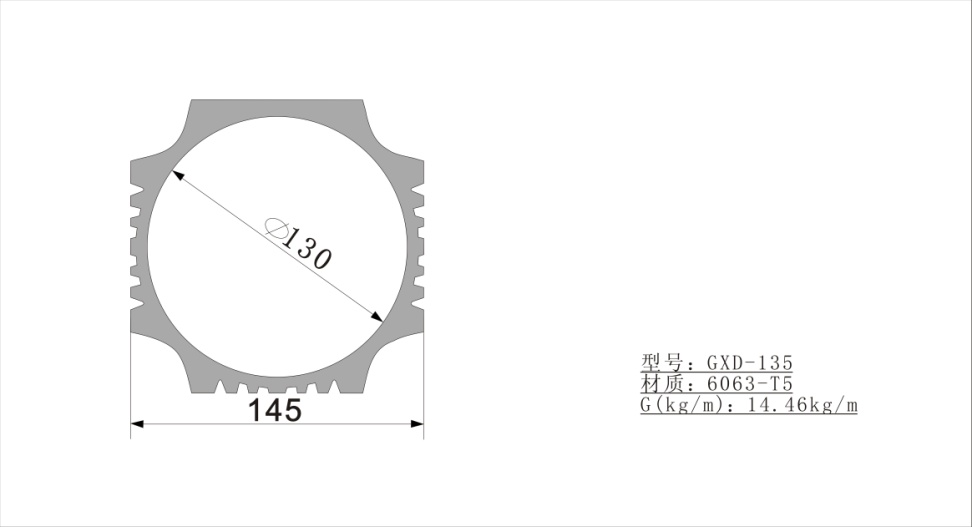

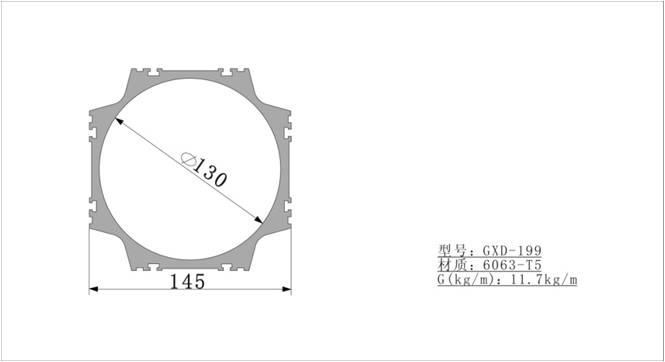

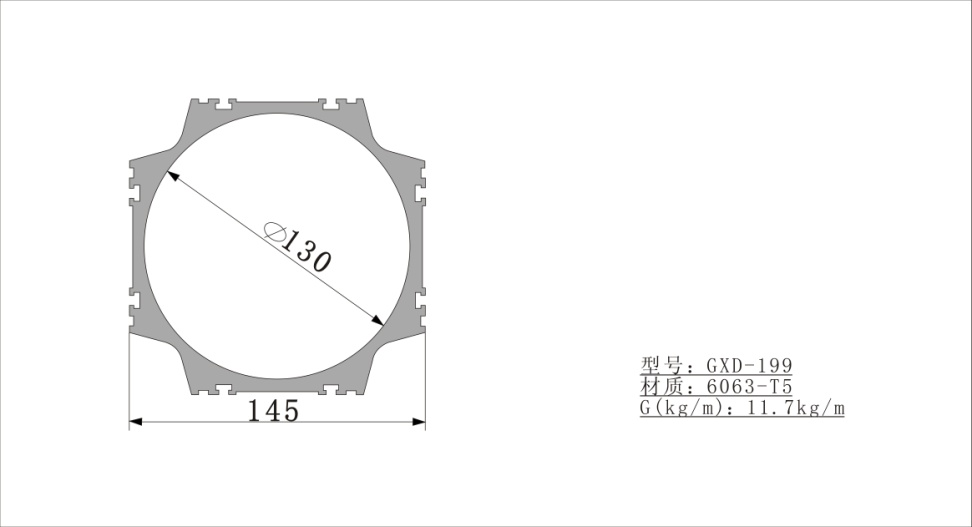

| Chalco-G199 | 11.7 | 130mm | Chalco-G135 | 14.46 | 130 |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

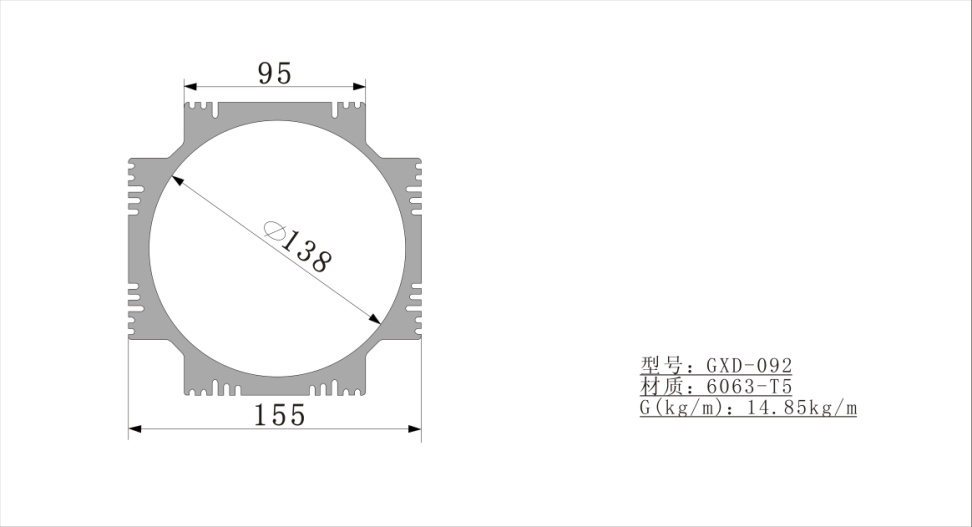

| Chalco-G128 | 13.5 | 130mm | Chalco-G092 | 14.85 | 138mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

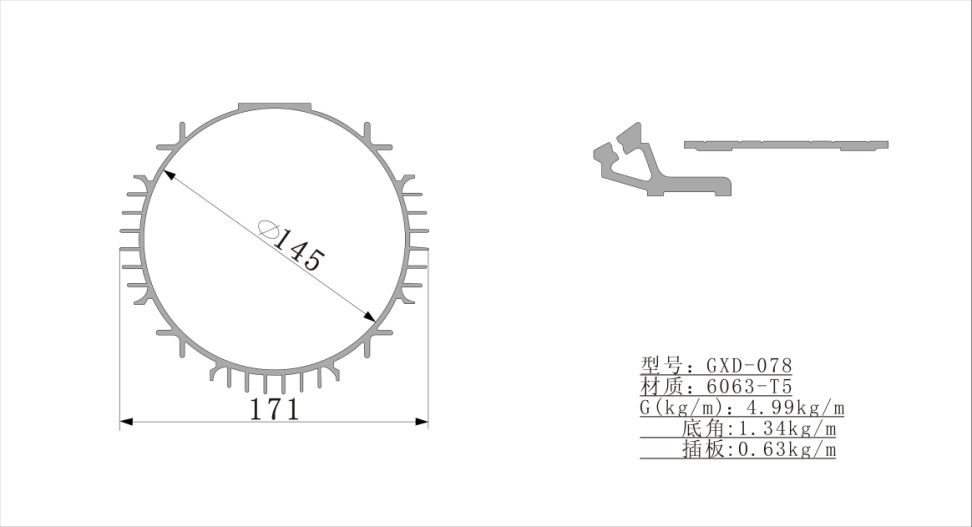

| Chalco-G078 |
4.99 1.34 0.63 |

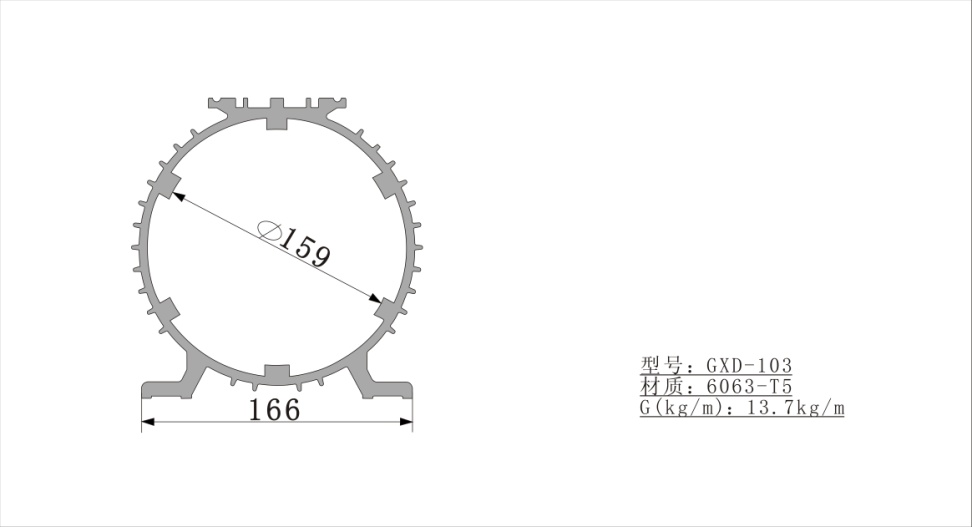

145mm | Chalco-G103 | 13.7 | 159mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

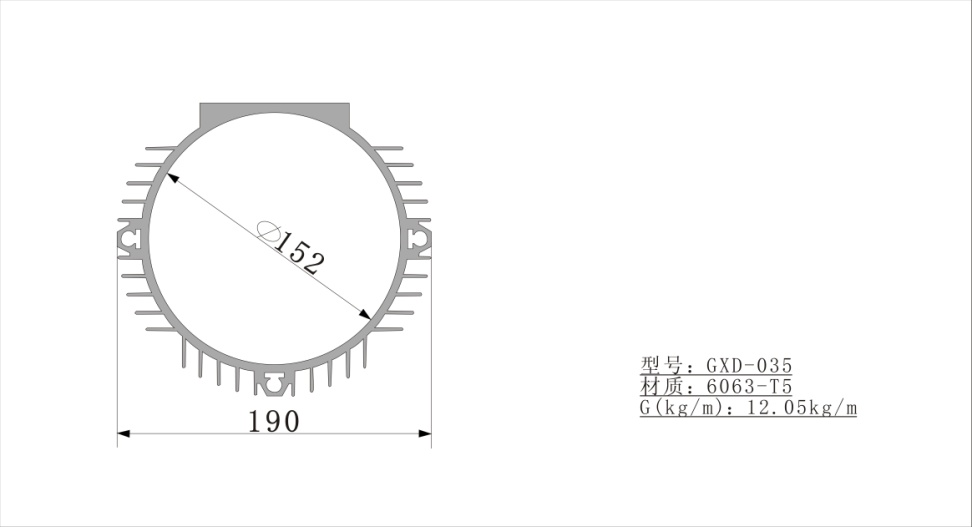

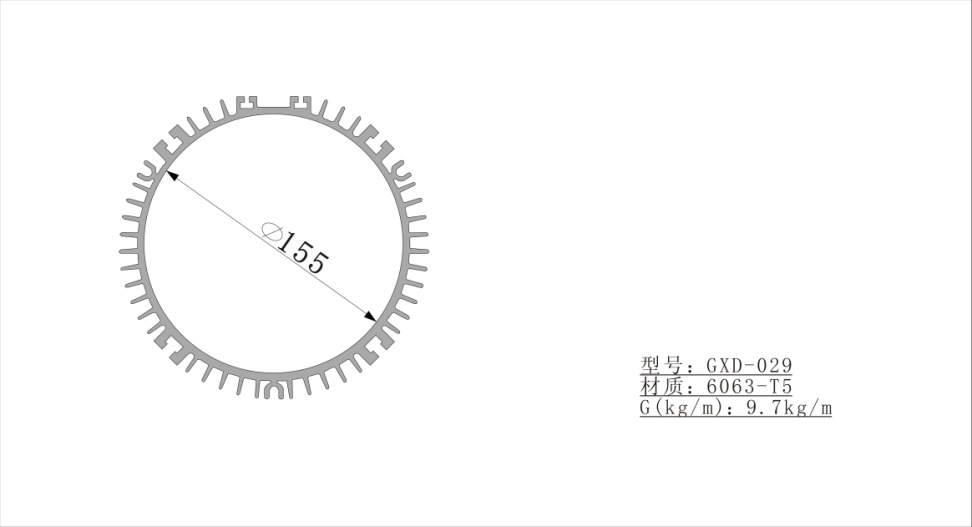

| Chalco-G035 | 12.05 | 152mm | Chalco-G029 | 9.7 | 155mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

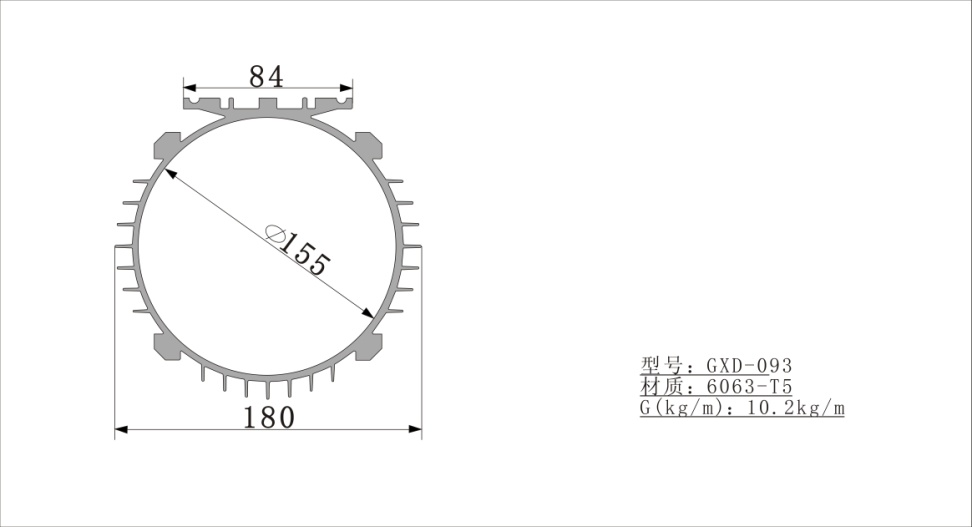

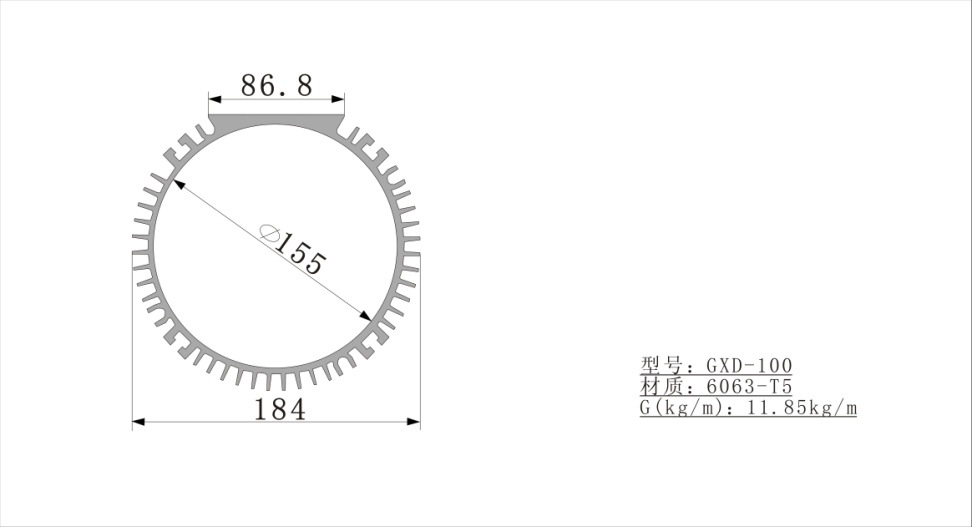

| Chalco-G093 | 10.2 | 155mm | Chalco-G100 | 11.85 | 155mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

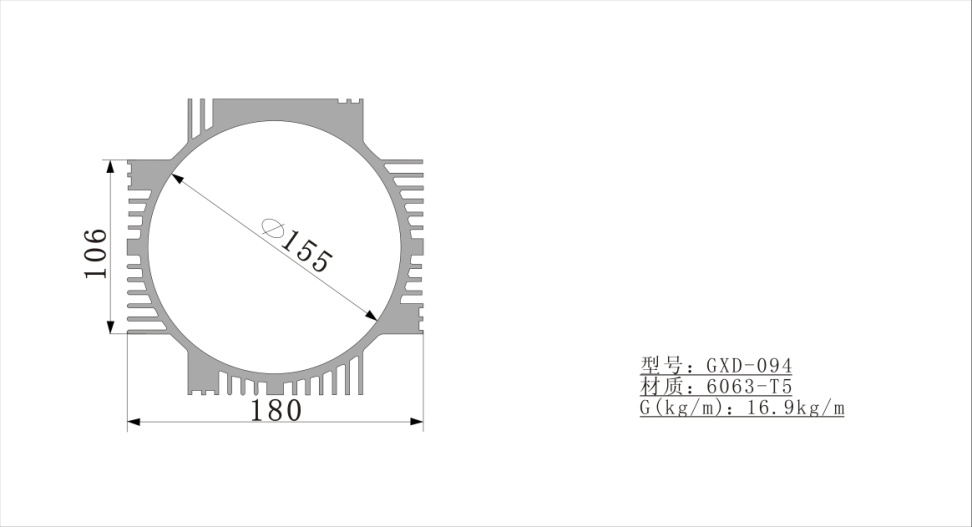

| Chalco-G110 | 15.6 | 155mm | Chalco-G094 | 16.9 | 155mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

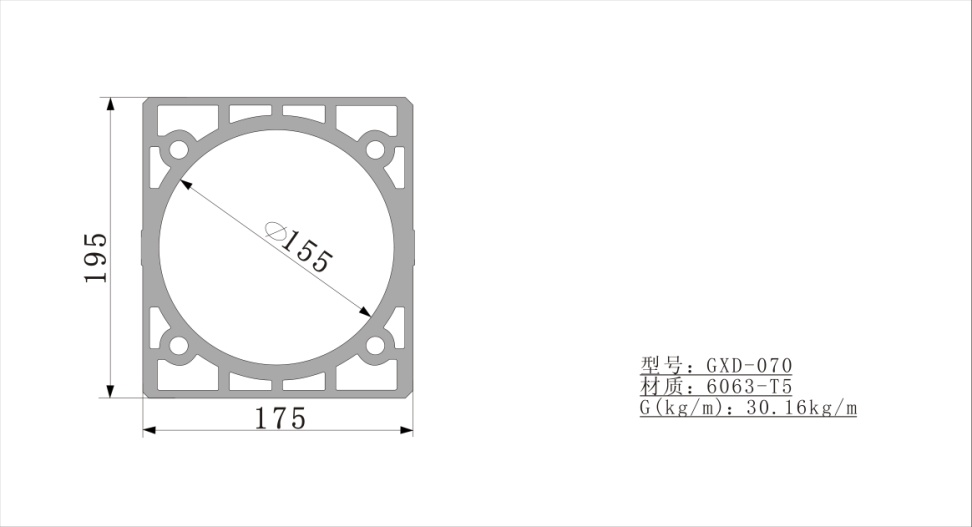

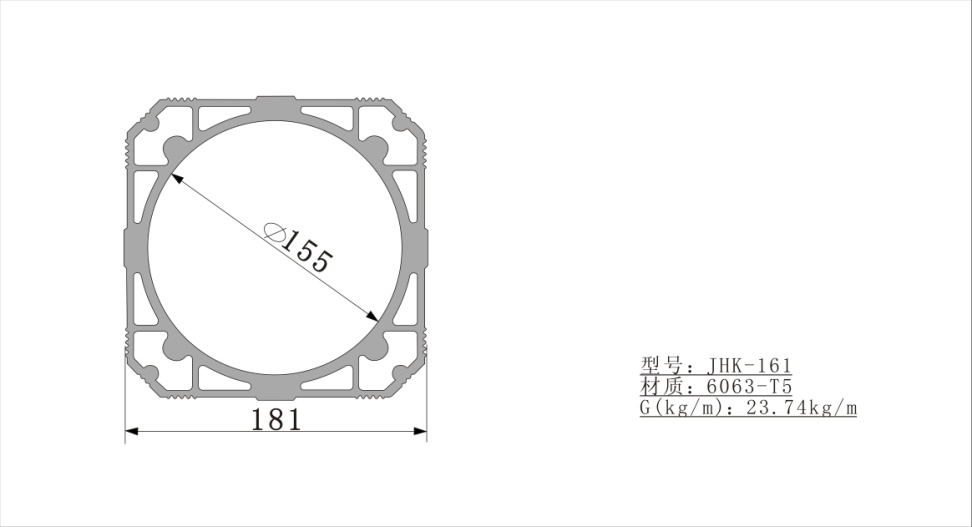

| Chalco-J161 | 23.74 | 155mm | Chalco-G070 | 30.16 | 155mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

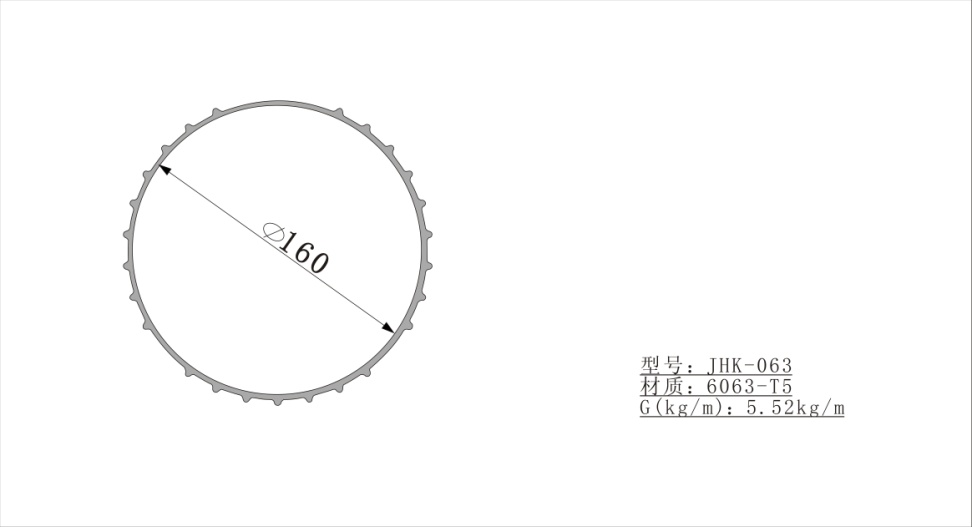

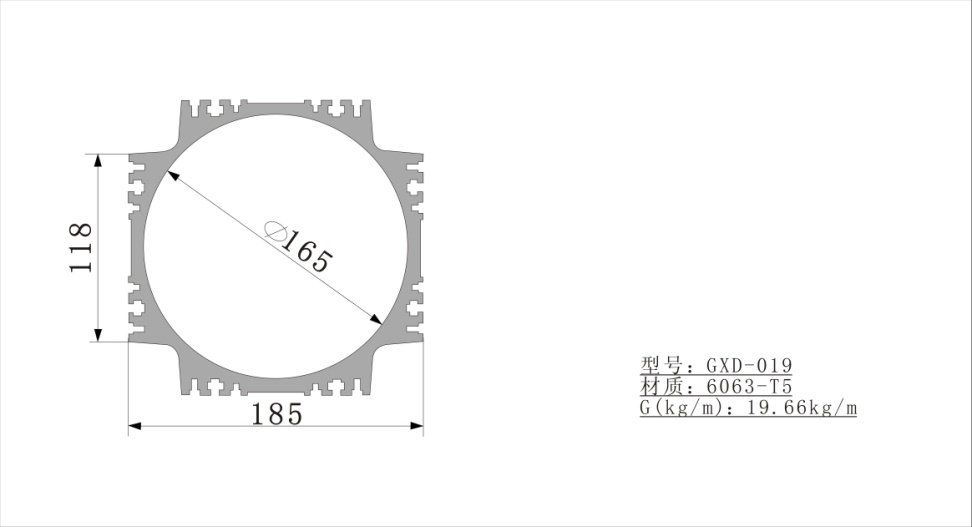

| Chalco-J063 | 5.52 | 160mm | Chalco-G019 | 19.66 | 165mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

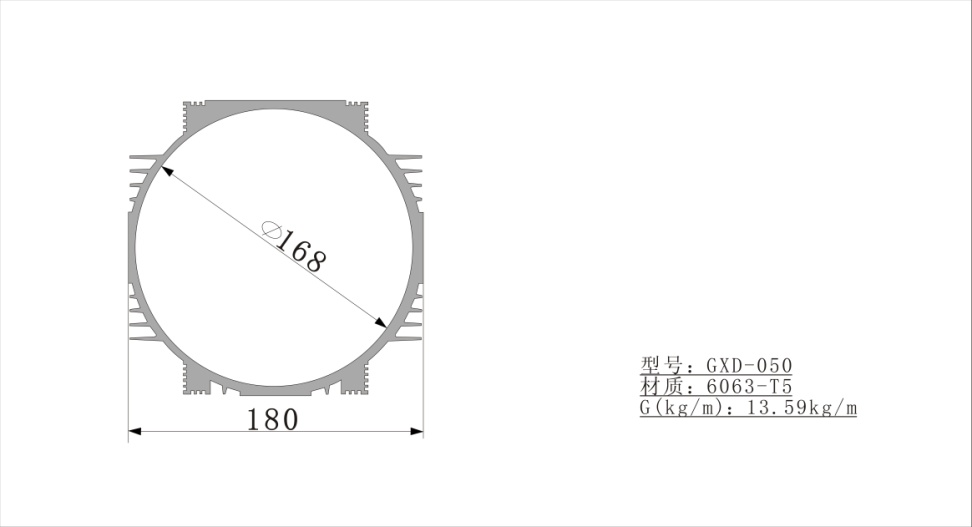

| Chalco-G050 | 13.59 | 168 | Chalco-G056 | 11.6 | 175mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

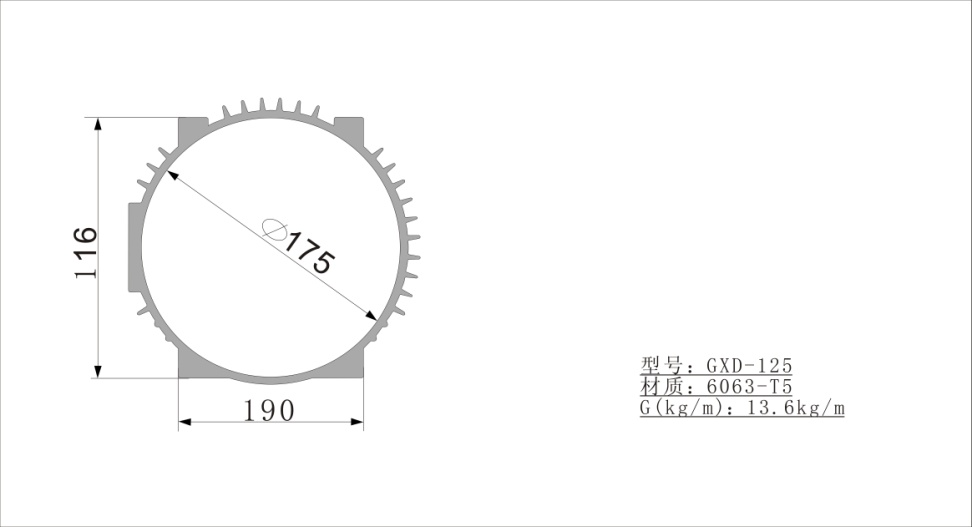

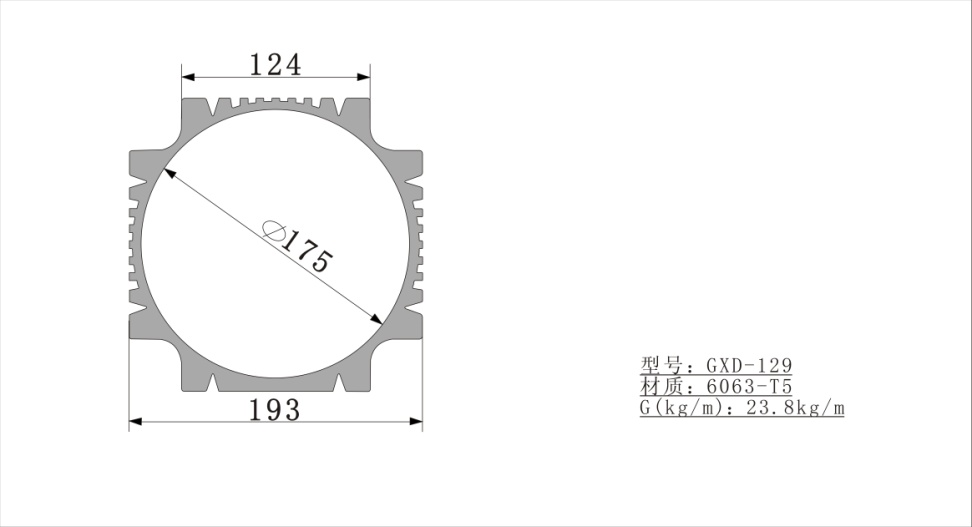

| Chalco-G125 | 13.6 | 175mm | Chalco-G129 | 23.8 | 175mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

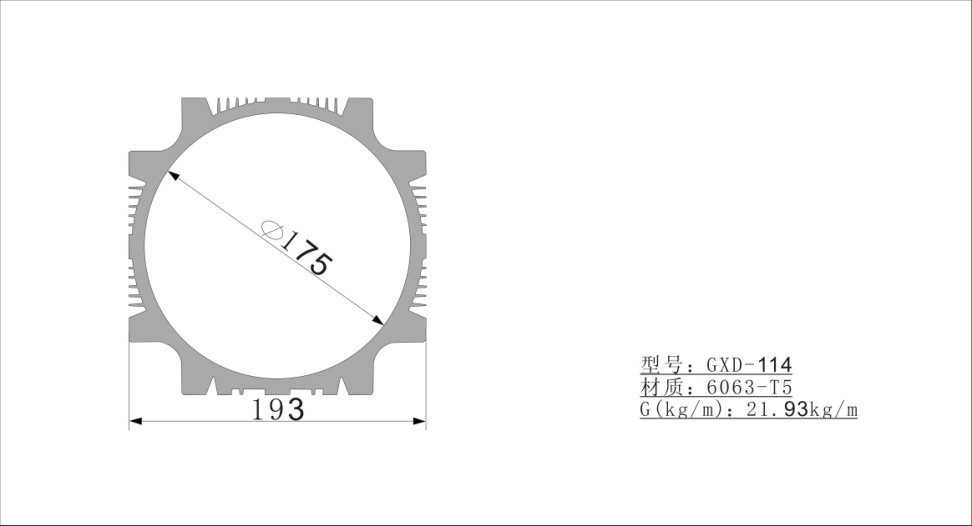

| Chalco-G114 | 21.93 | 175 | Chalco-J162 | 29.6 | 175mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

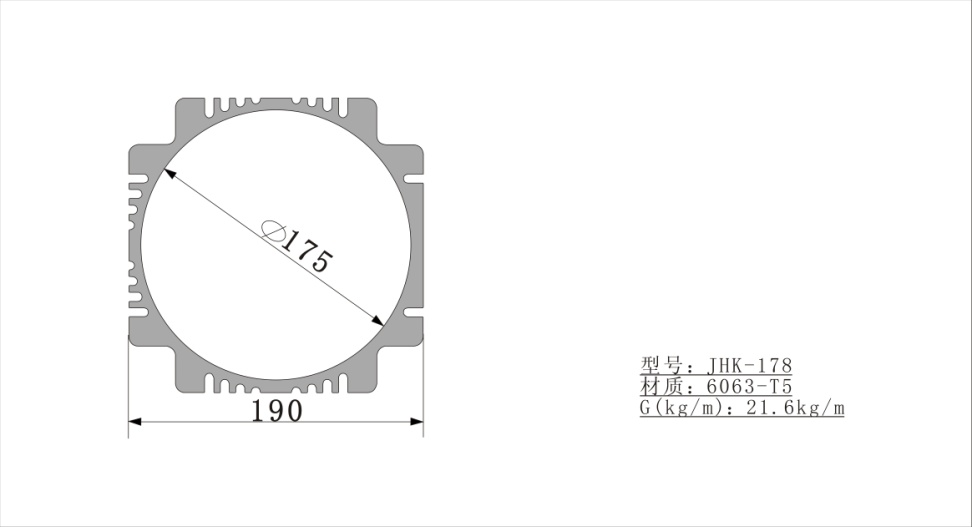

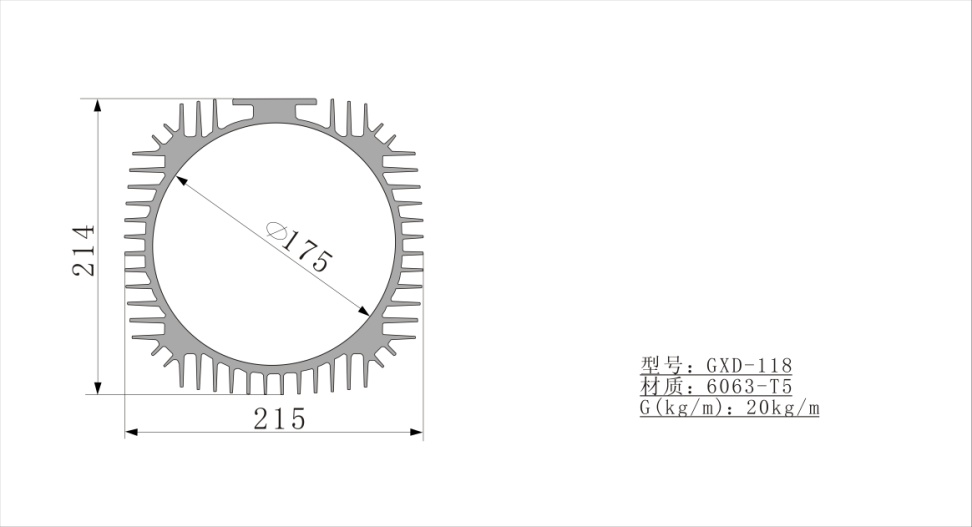

| Chalco-J178 | 21.6 | 175mm | Chalco-G118 | 20 | 175mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-G130 | 30.73 | 180 | Chalco-G134 | 19.7 | 180mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

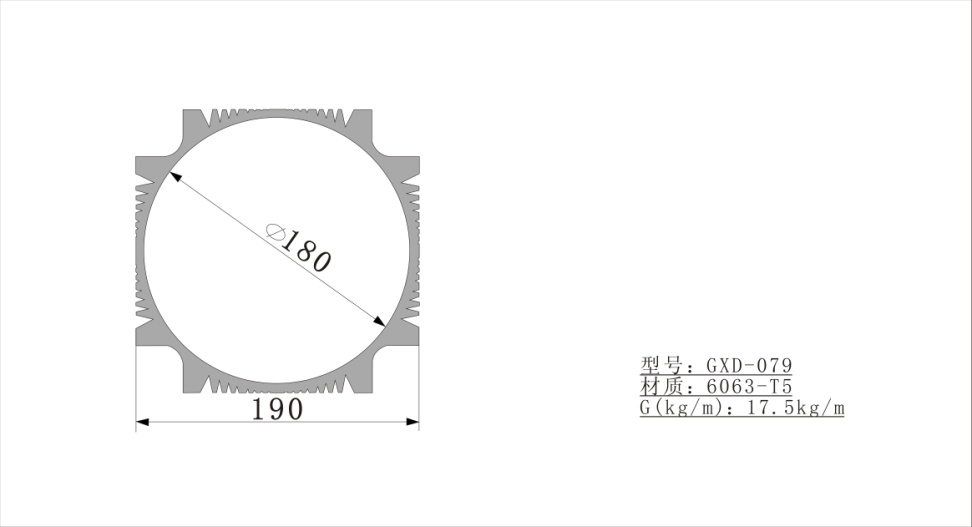

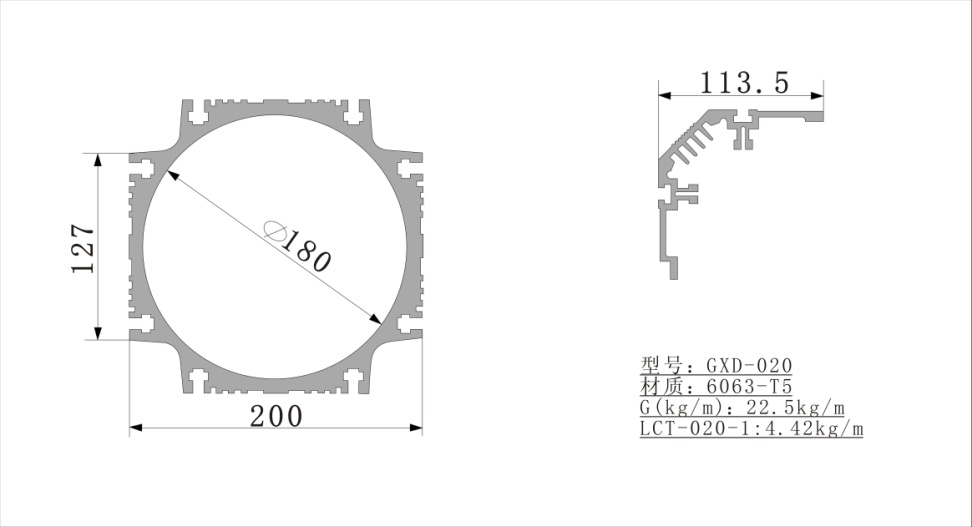

| Chalco-G020 | 22.5/4.42 | 180mm | Chalco-G079 | 17.5 | 180mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

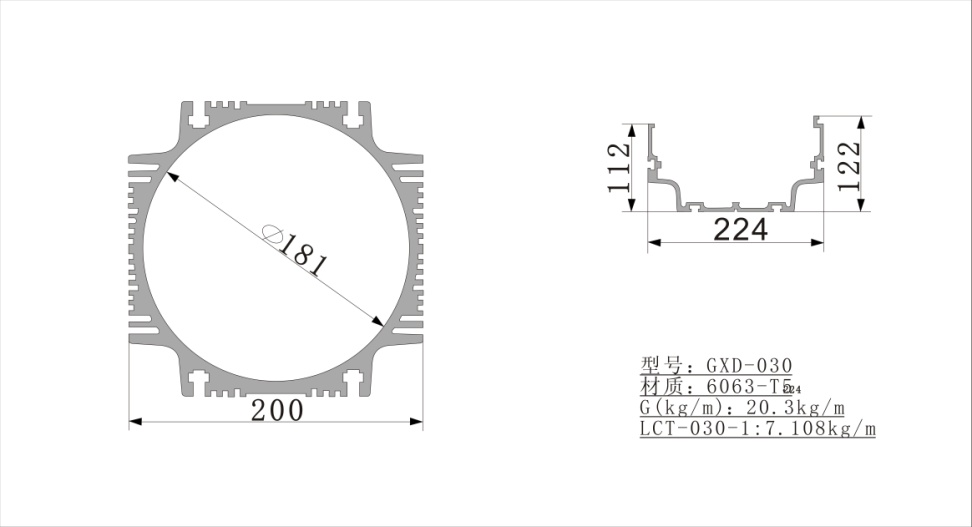

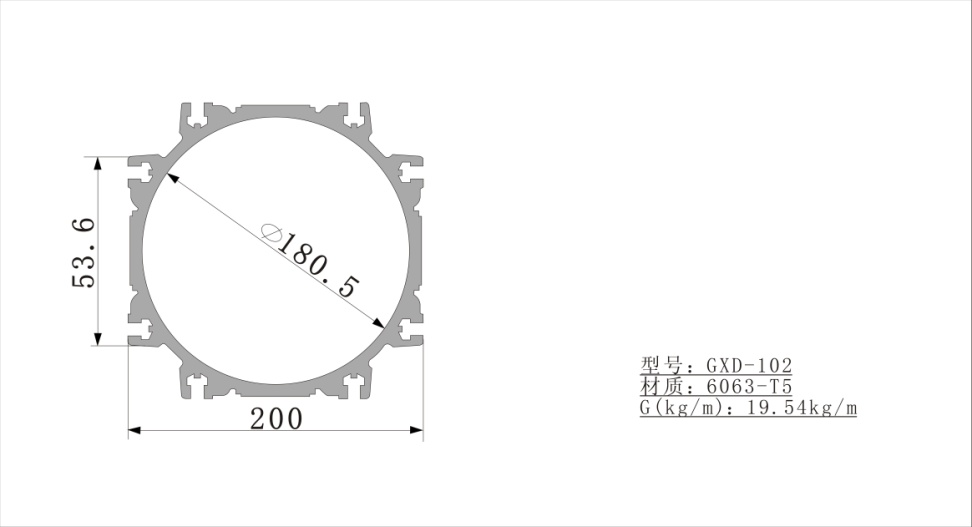

| Chalco-G102 | 19.54 | 180.5mm | Chalco-G030 | 20.3/7.108 | 181mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

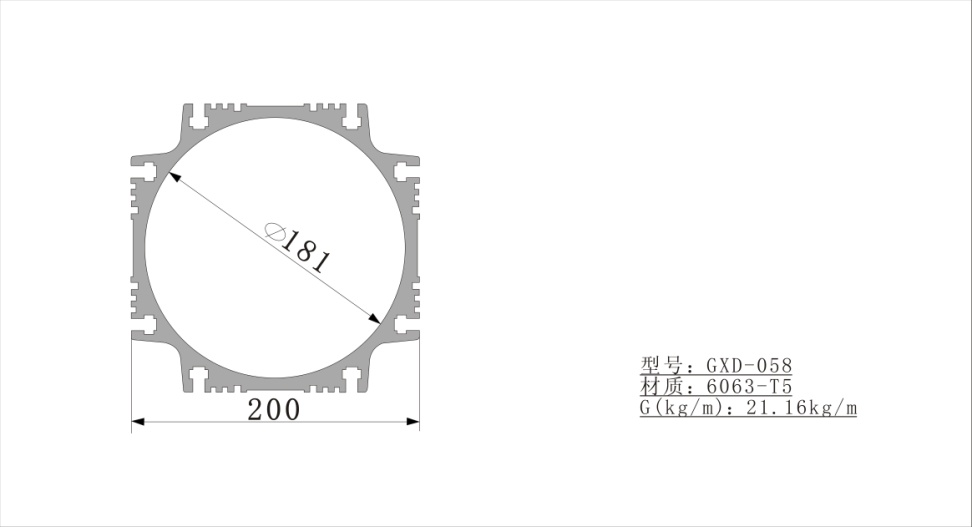

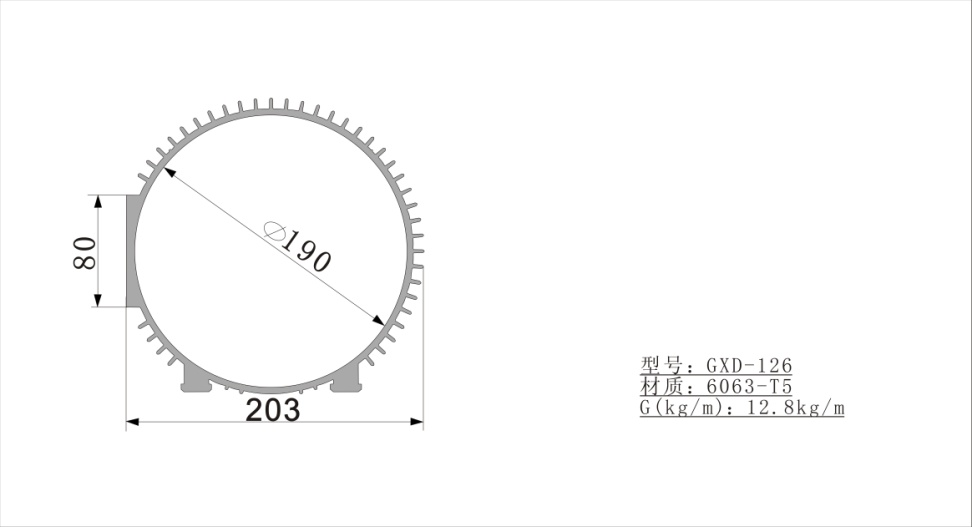

| Chalco-G058 | 21.16 | 181mm | Chalco-G126 | 12.8 | 190mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

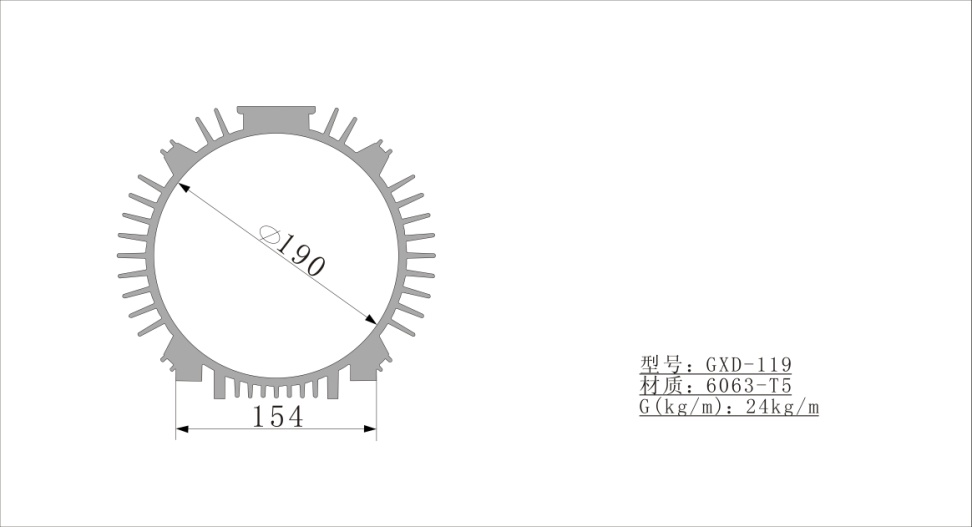

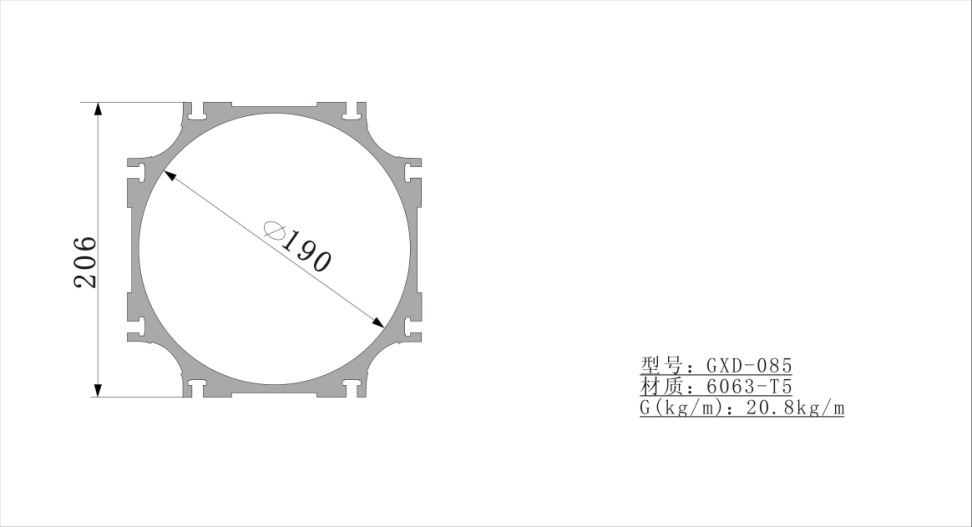

| Chalco-G119 | 24 | 190 | Chalco-G085 | 20.8 | 190mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

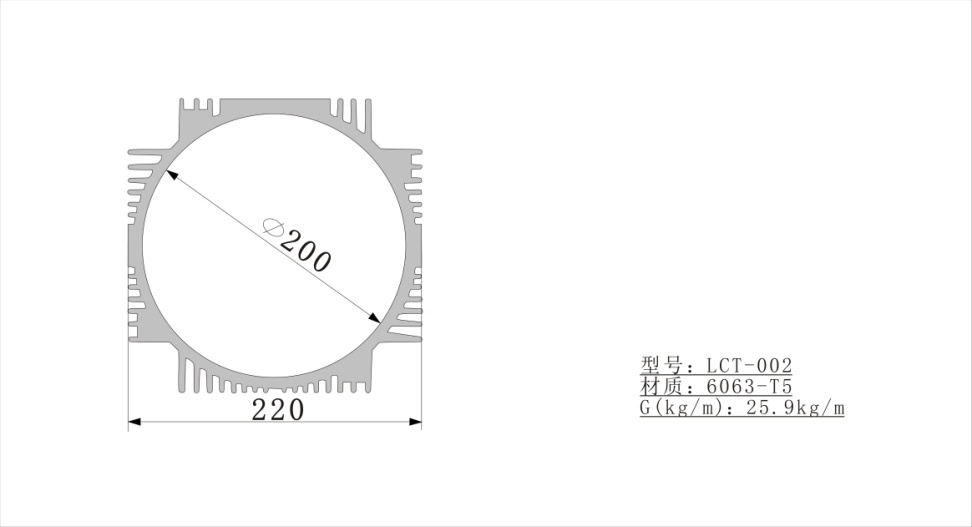

| Chalco-G074 | 23.83 | 190mm | Chalco-G002 | 25.9 | 200 |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

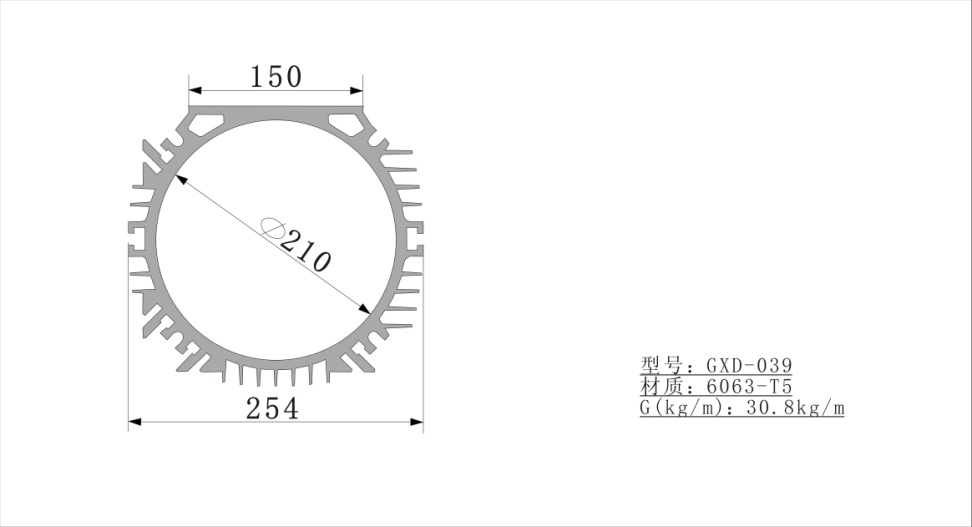

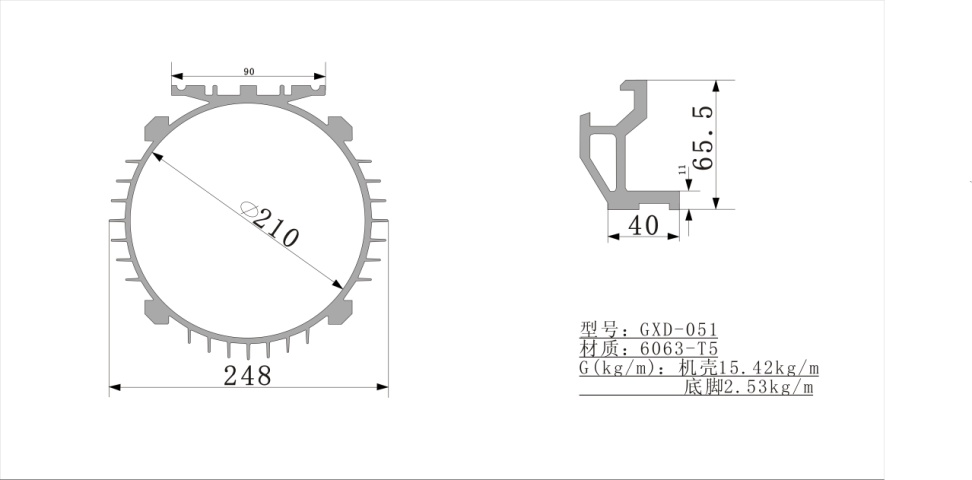

| Chalco-G039 | 30.8 | 210mm | Chalco-G051 | 15.42/2.53 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

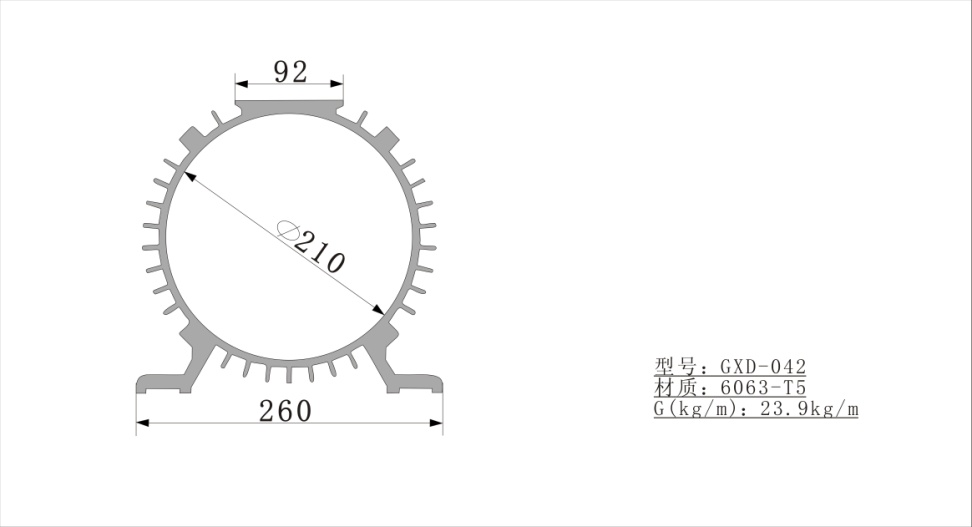

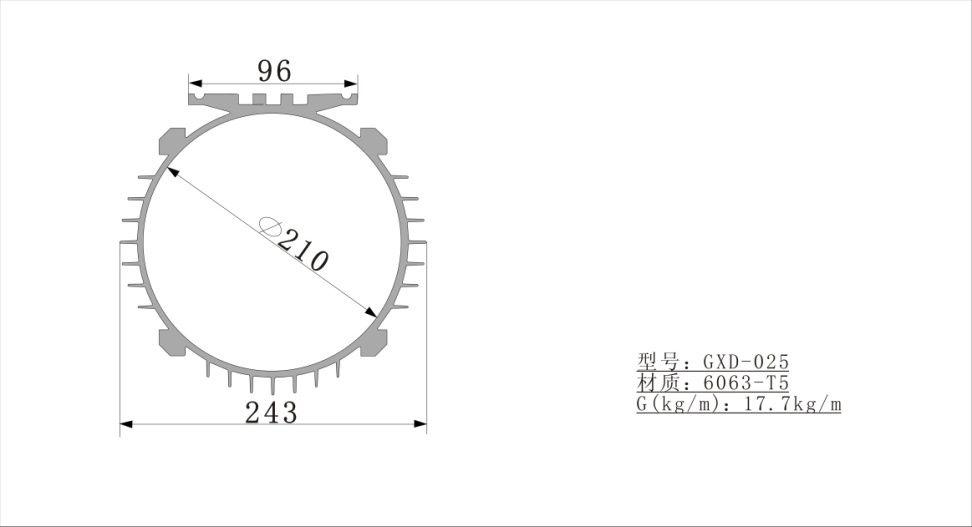

| Chalco-G025 | 17.7 | 210mm | Chalco-G042 | 23.9 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

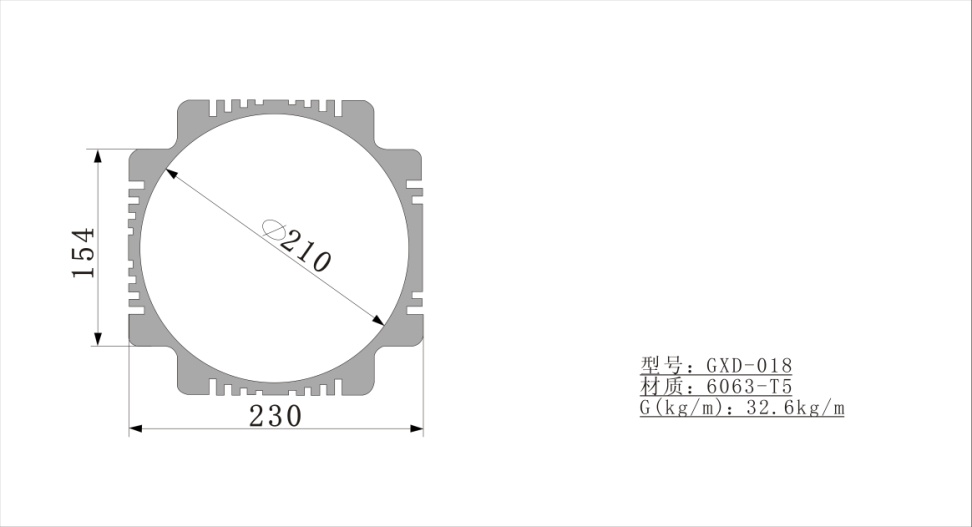

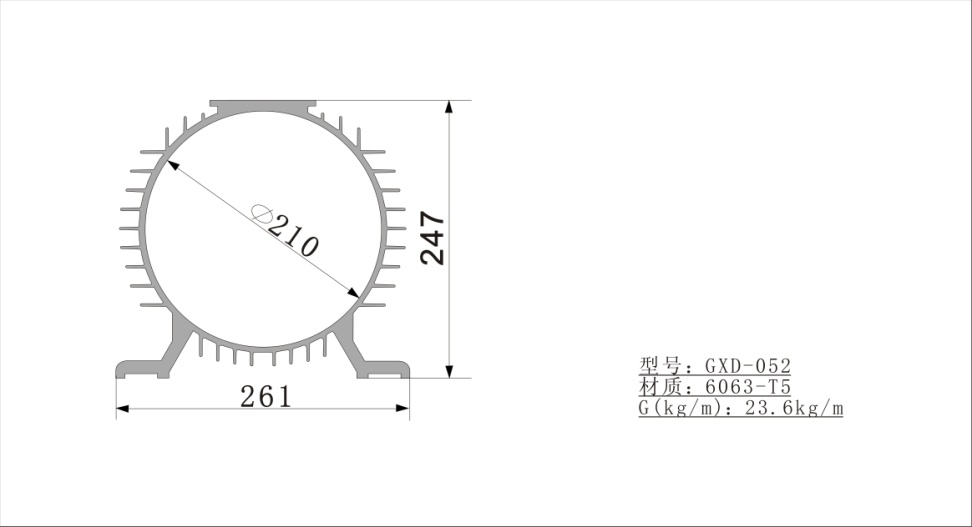

| Chalco-G052 | 23.6 | 210mm | Chalco-G018 | 32.6 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

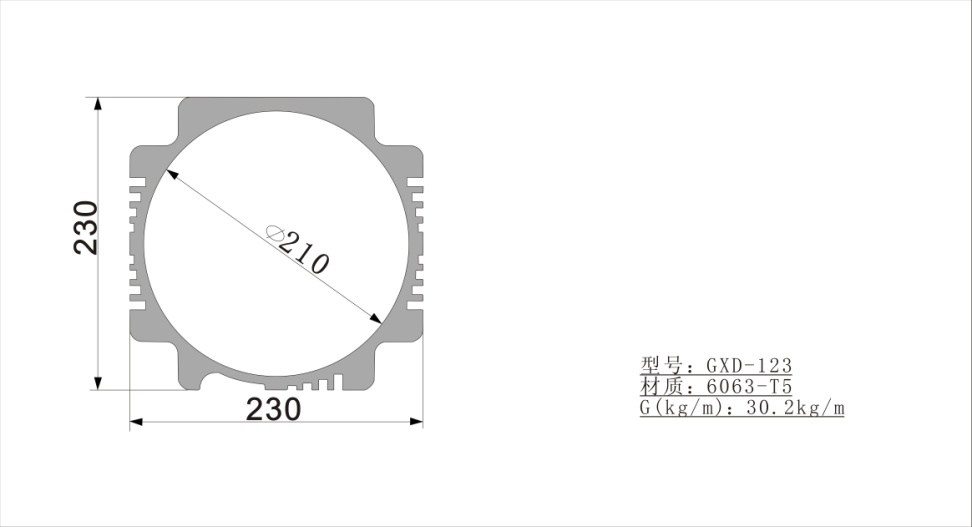

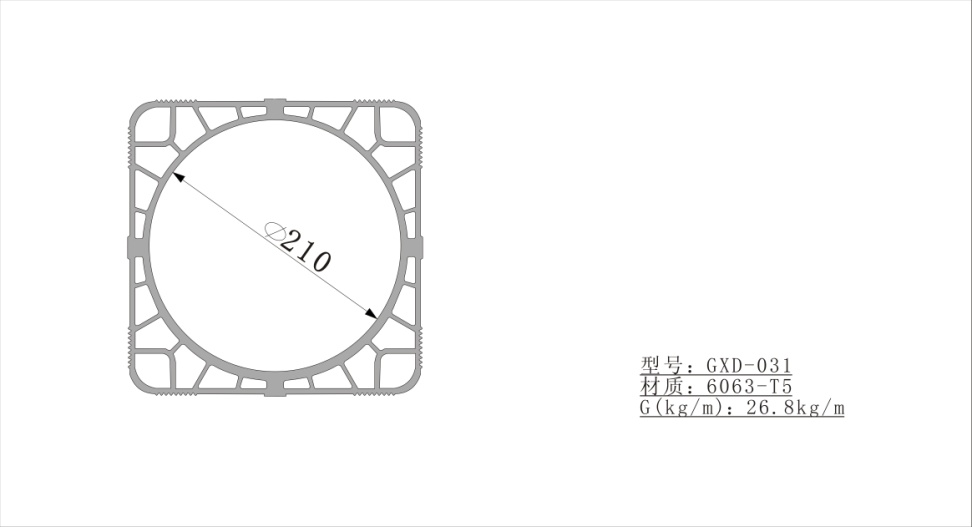

| Chalco-G123 | 30.2 | 210mm | Chalco-G031 | 26.8 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

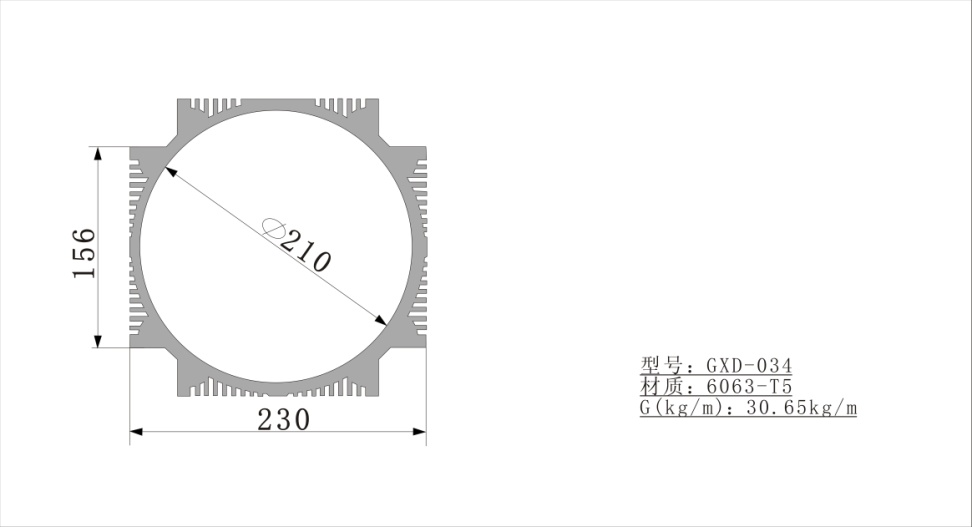

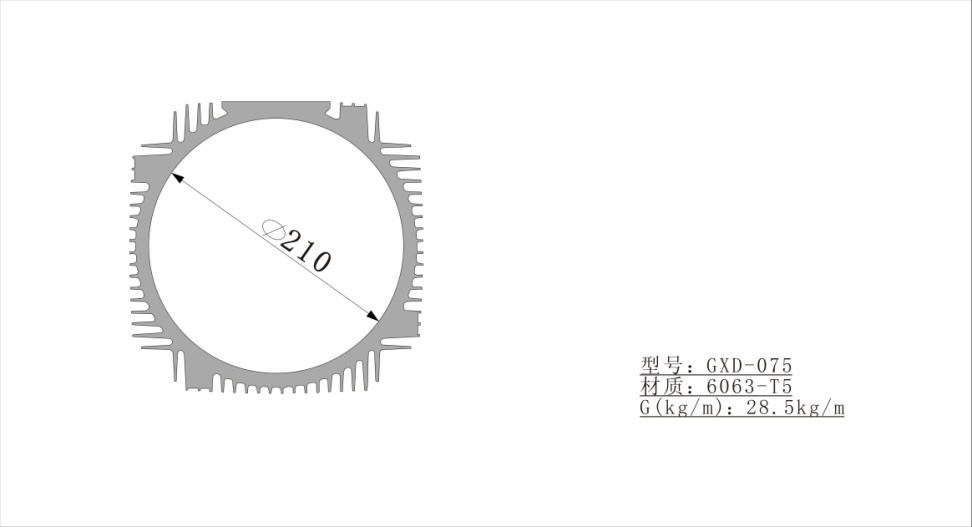

| Chalco-G034 | 30.65 | 210mm | Chalco-G075 | 28.5 | 210mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-G088 | 39.5/3.6 | 210mm | Chalco-G111 | 30.1 | 215mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

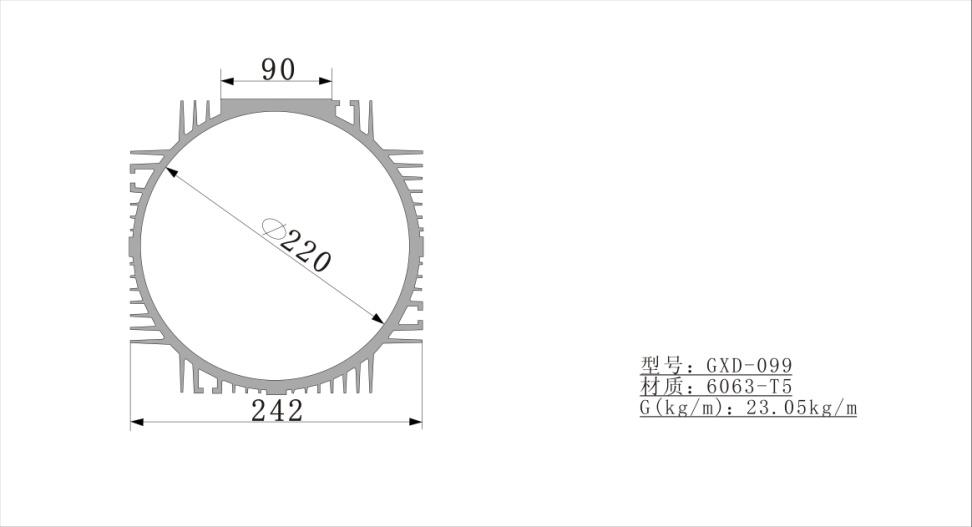

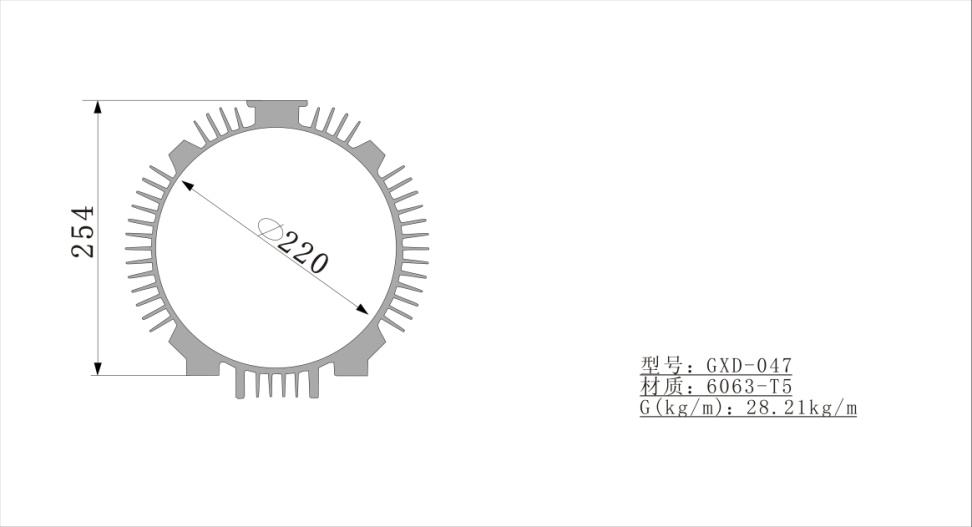

| Chalco-G047 | 28.21 | 220mm | Chalco-G099 | 23.05 | 220mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

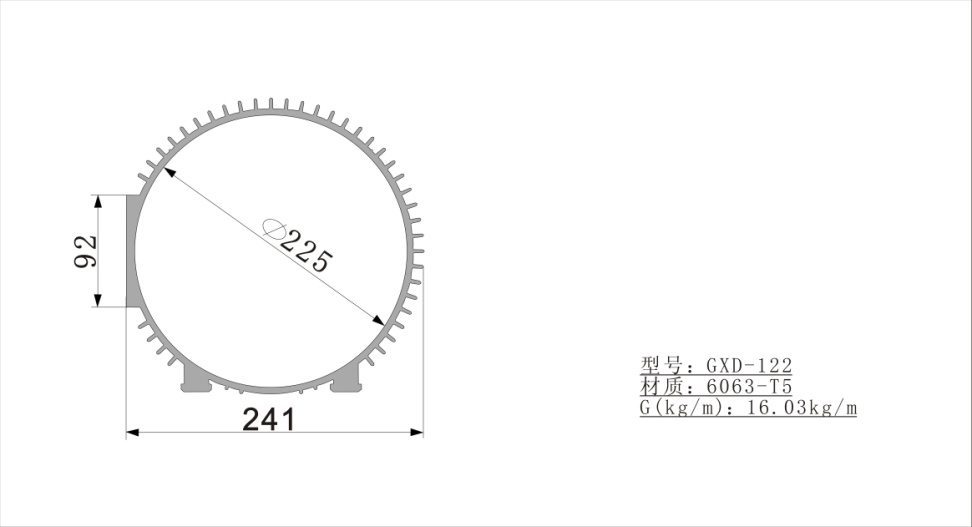

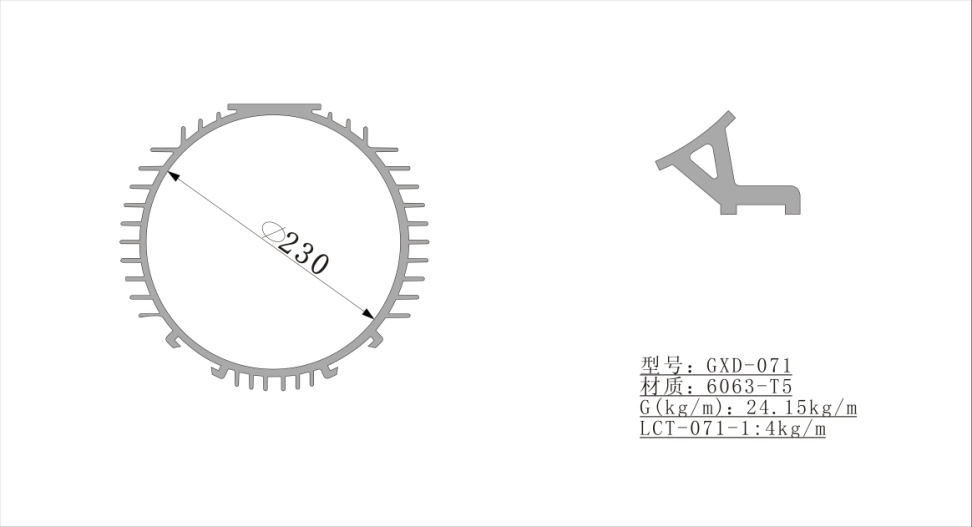

| Chalco-G122 | 16.03 | 225mm | Chalco-G071 | 24.15/4 | 230mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

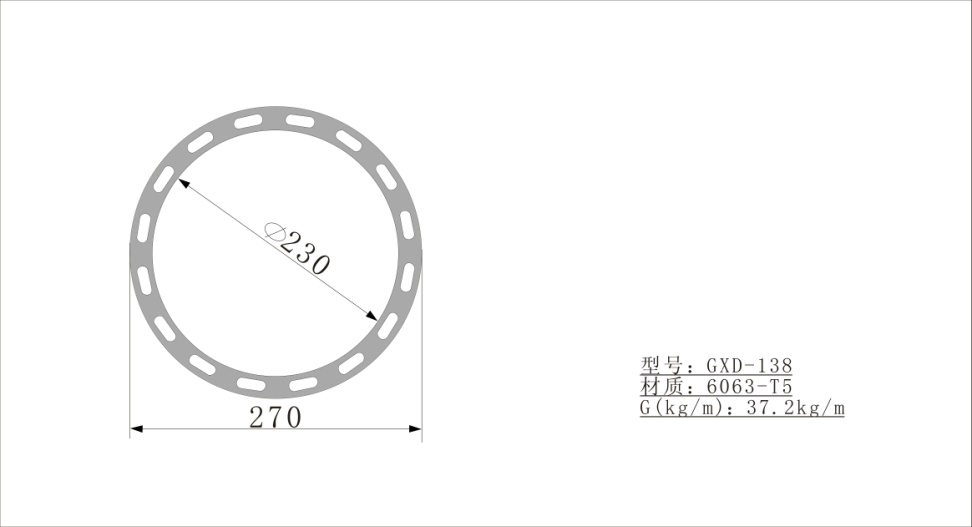

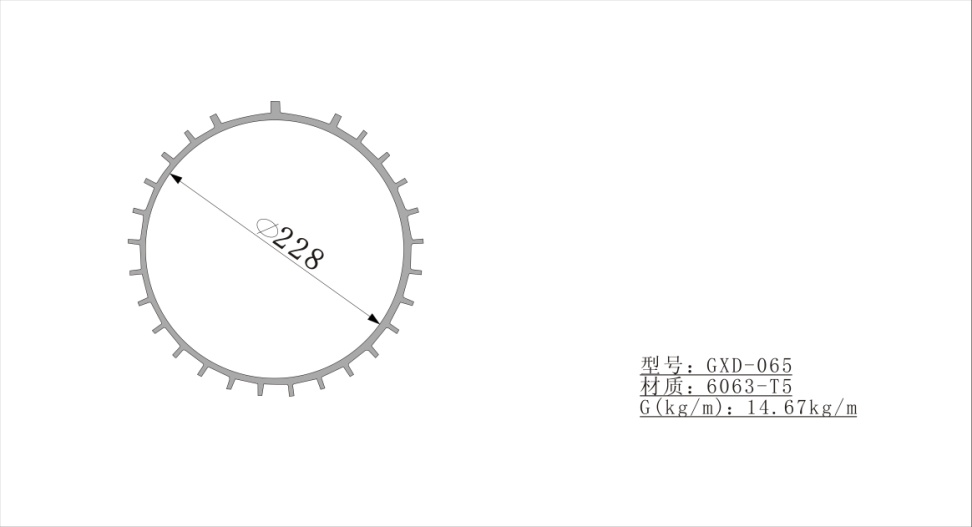

| Chalco-G065 | 14.67 | 228mm | Chalco-G138 | 37.2 | 230mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

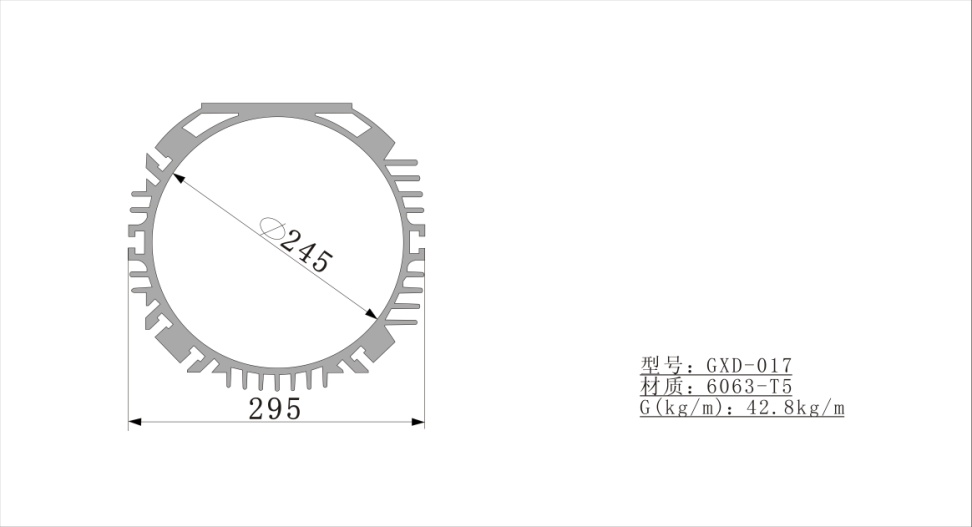

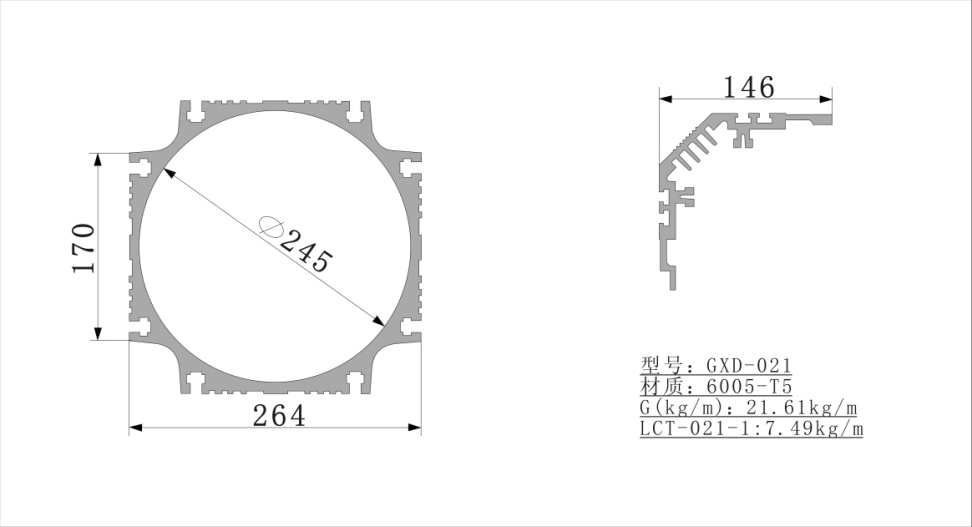

| Chalco-G021 | 21.61/7.49 | 245mm | Chalco-G017 | 42.8 | 245mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

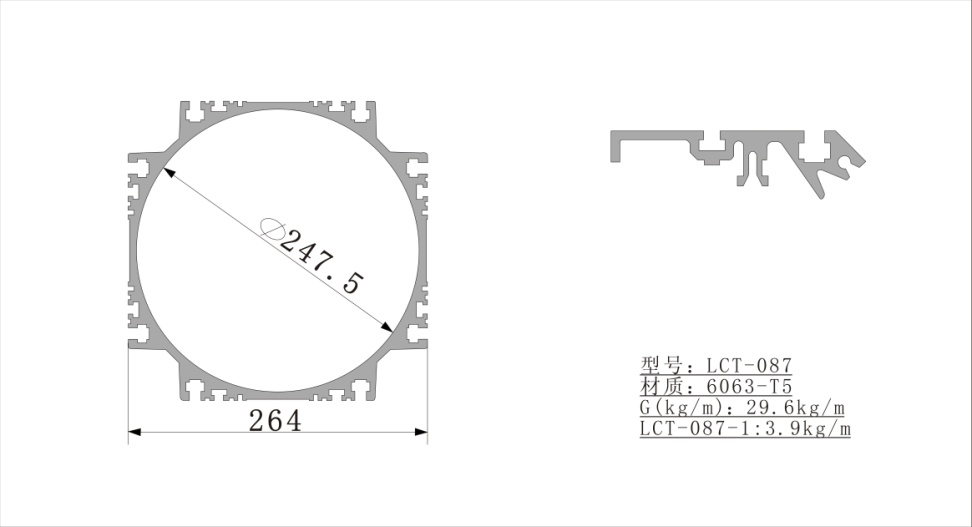

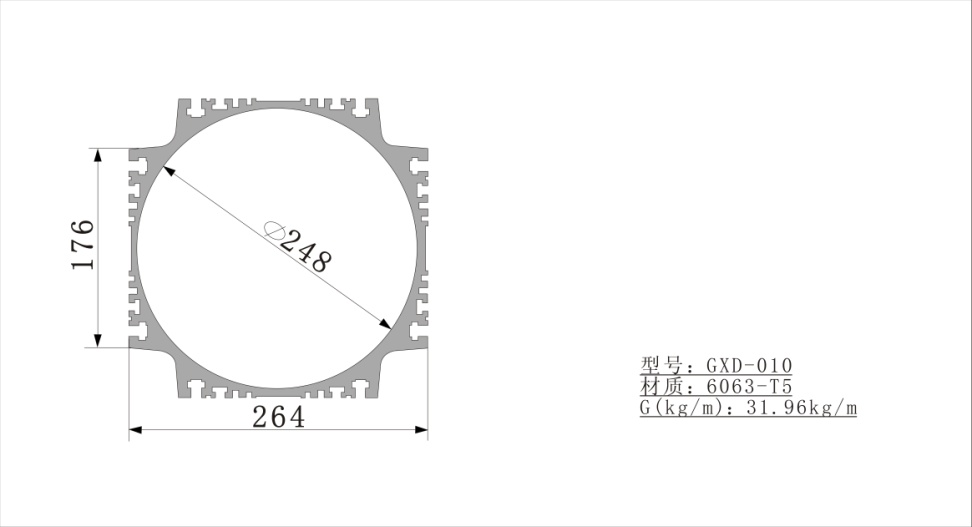

| Chalco-G087 | 29.6/3.9 | 247.5mm | Chalco-G010 | 31.96 | 248mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

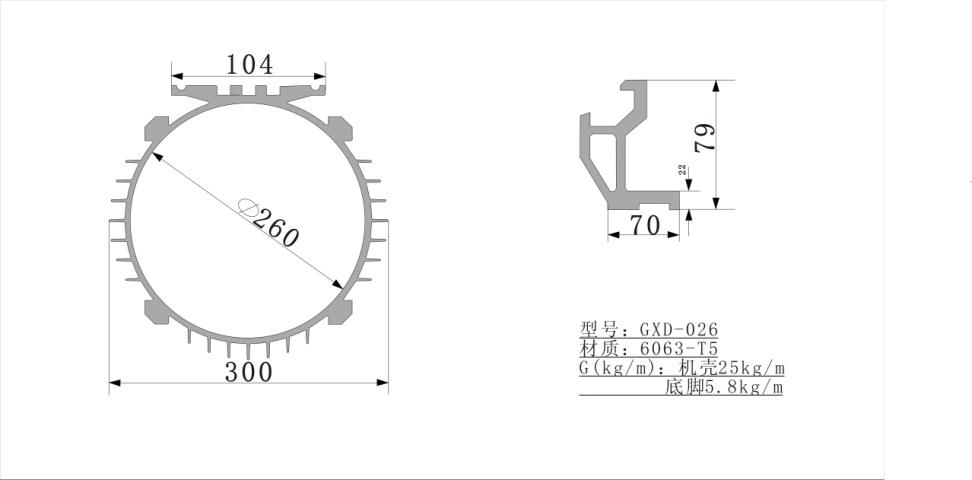

| Chalco-G028 | 22.5 | 260mm | Chalco-G026 | 25/5.8 | 260mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

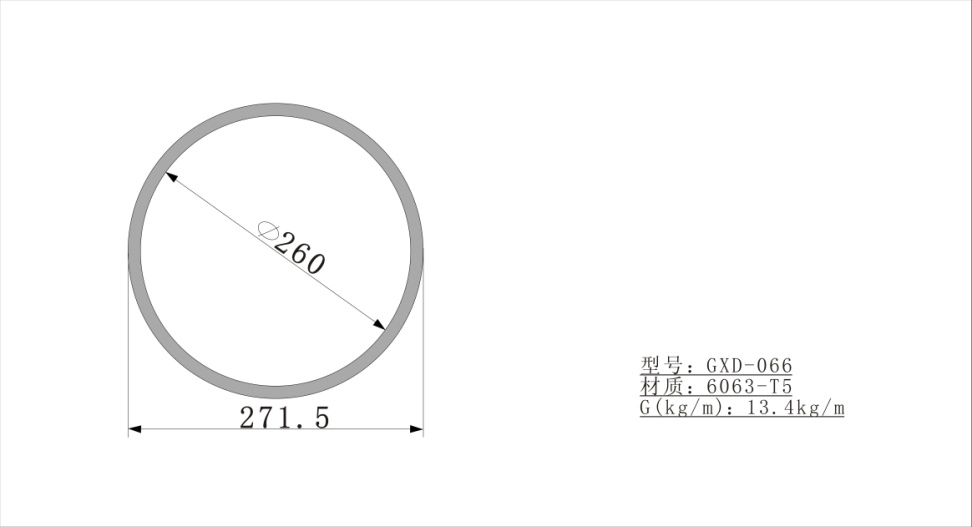

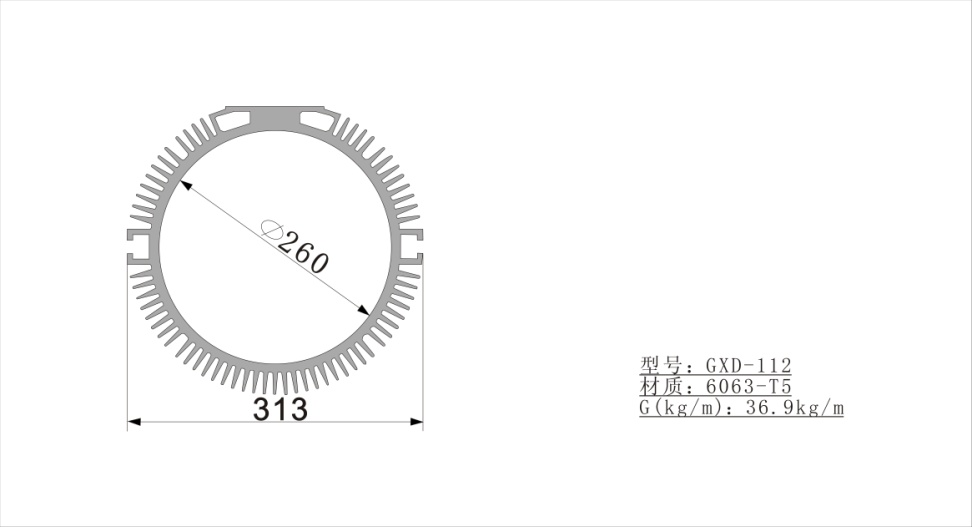

| Chalco-G066 | 13.4 | 260mm | Chalco-G112 | 36.9 | 260mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

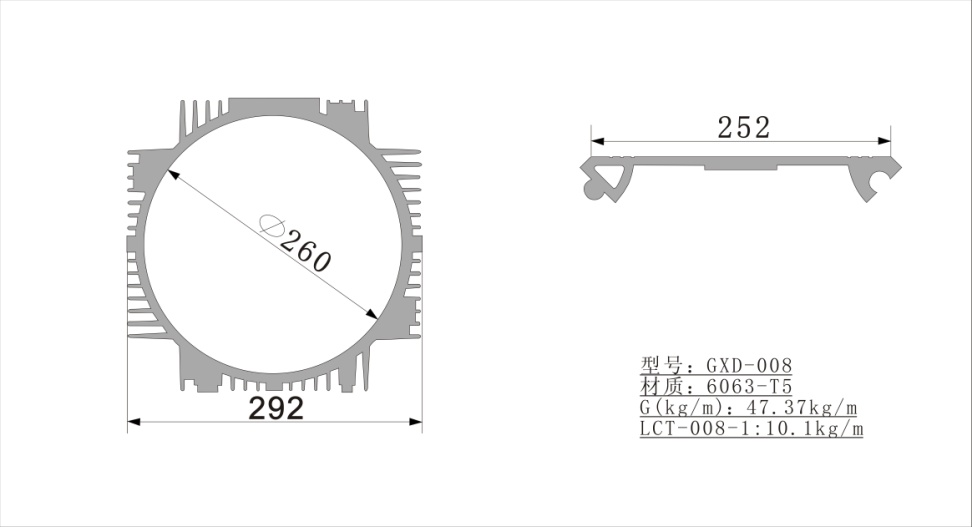

| Chalco-G008 | 47.37/10.1 | 260mm | Chalco-G076 | 41.86 | 260mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

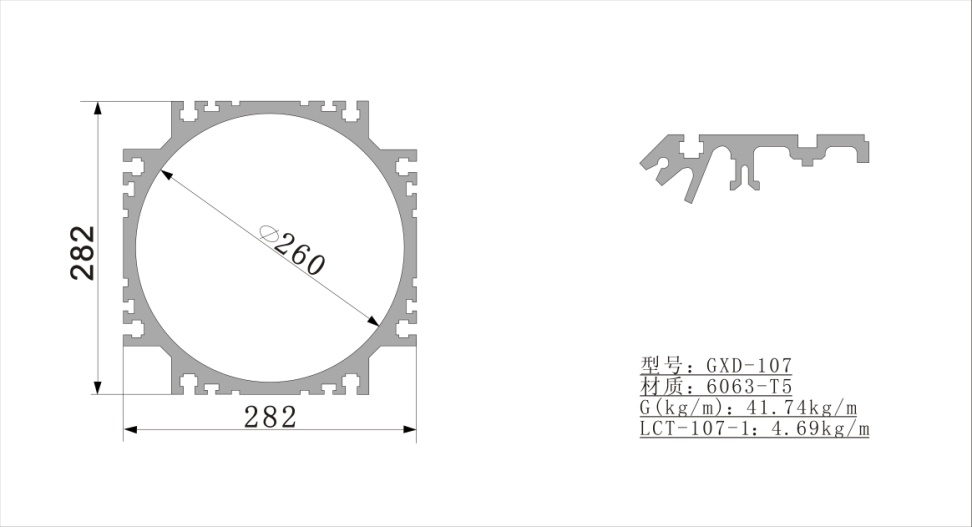

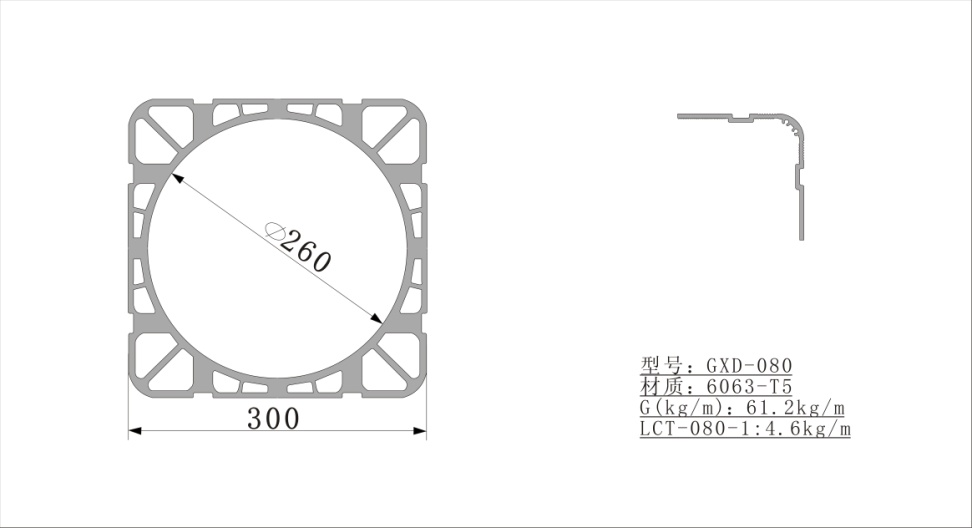

| Chalco-G080 | 61.2/4.6 | 260mm | Chalco-G107 | 41.74/4.69 | 260mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

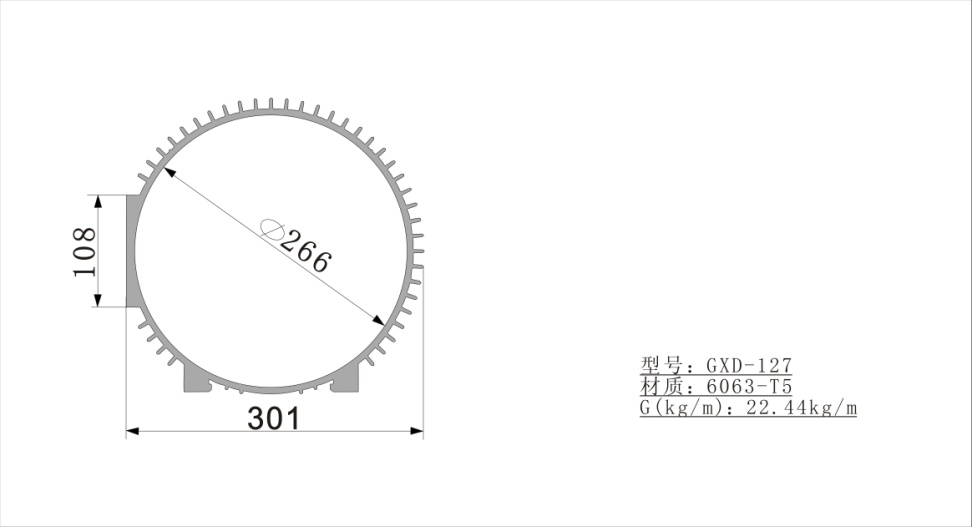

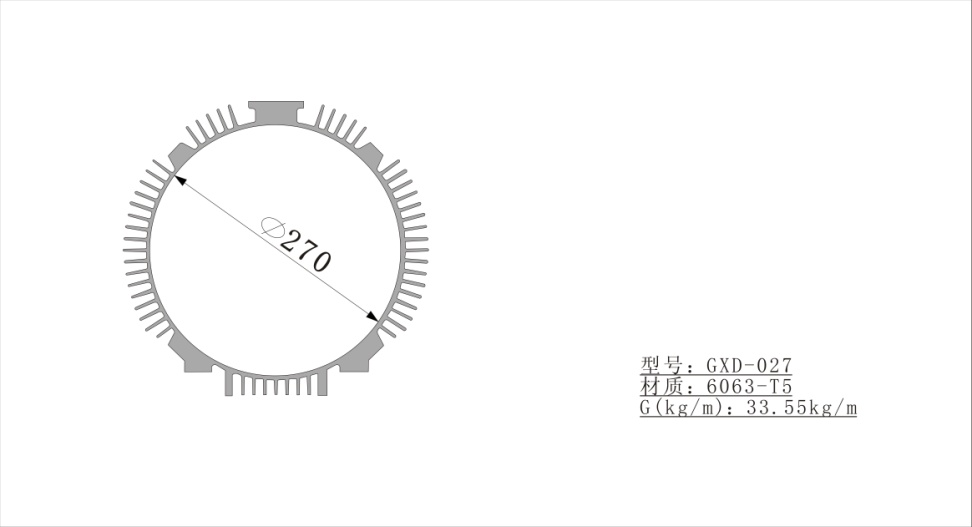

| Chalco-G127 | 22.44 | 266mm | Chalco-G027 | 33.55 | 270mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

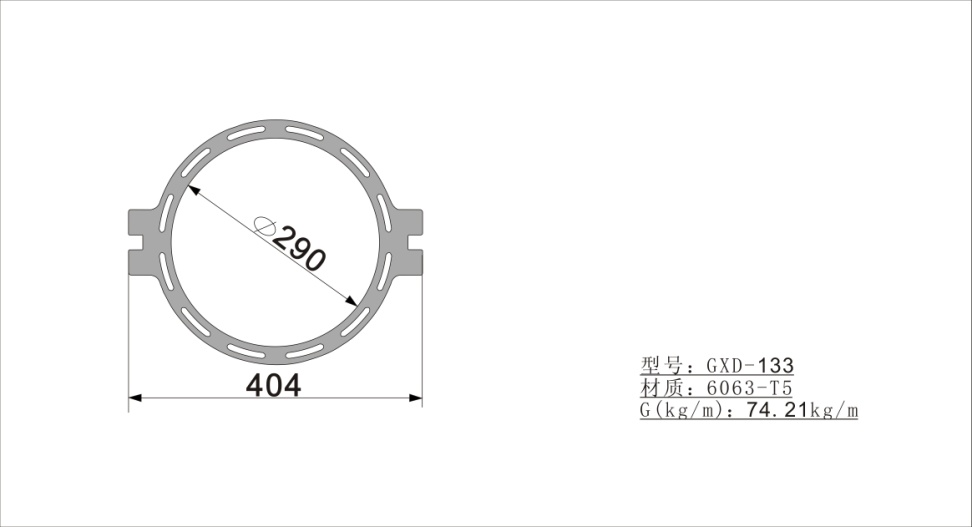

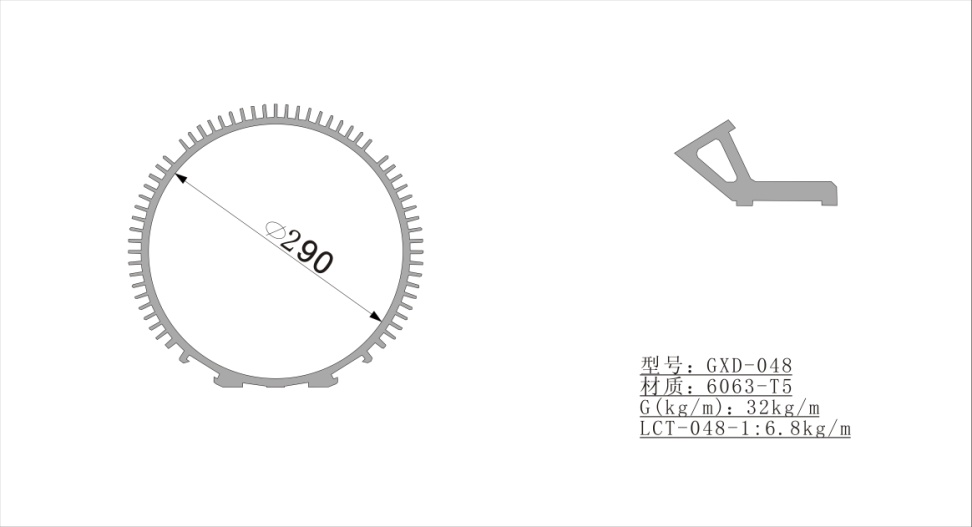

| Chalco-G048 | 32/6.8 | 290mm | Chalco-G133 | 74.21 | 290mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

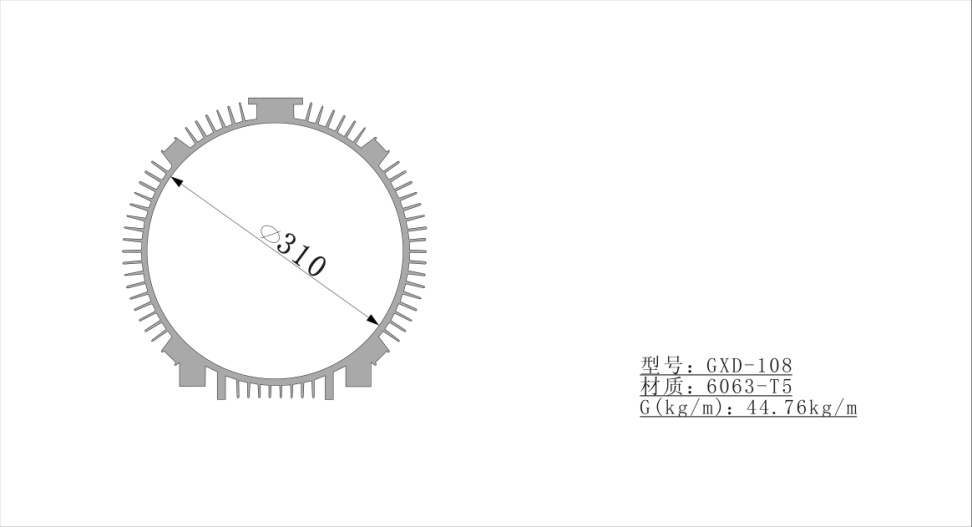

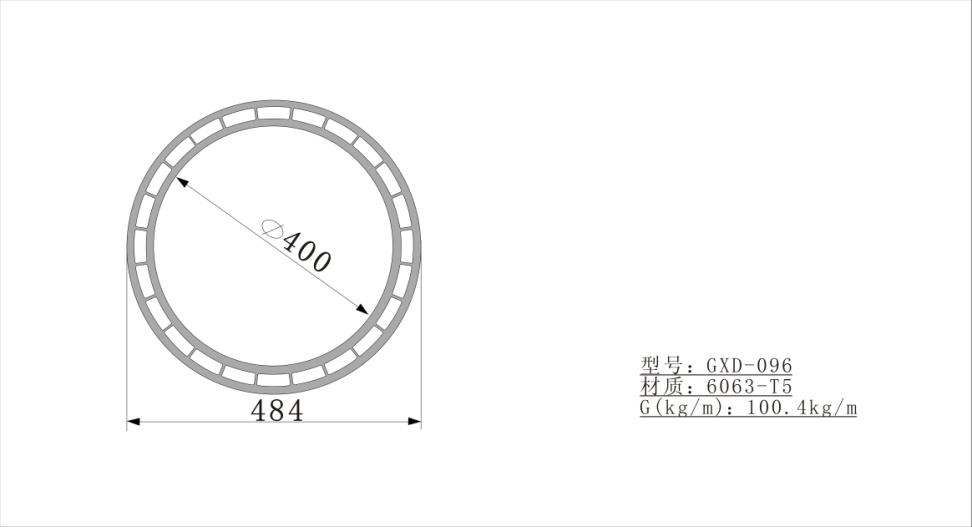

| Chalco-G108 | 44.76 | 310mm | Chalco-G096 | 100.4 | 400mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

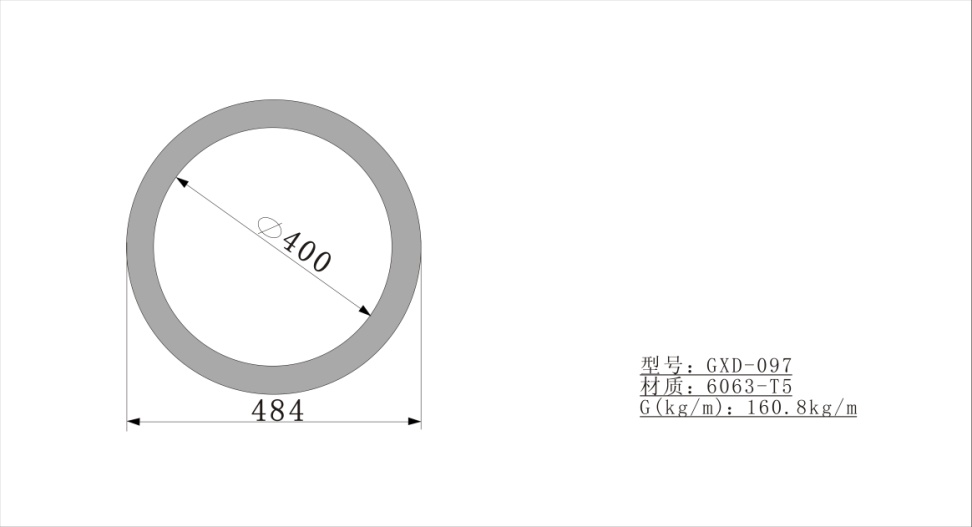

| Chalco-G097 | 160.8 | 400mm | Chalco-G124 | 110 | 400mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

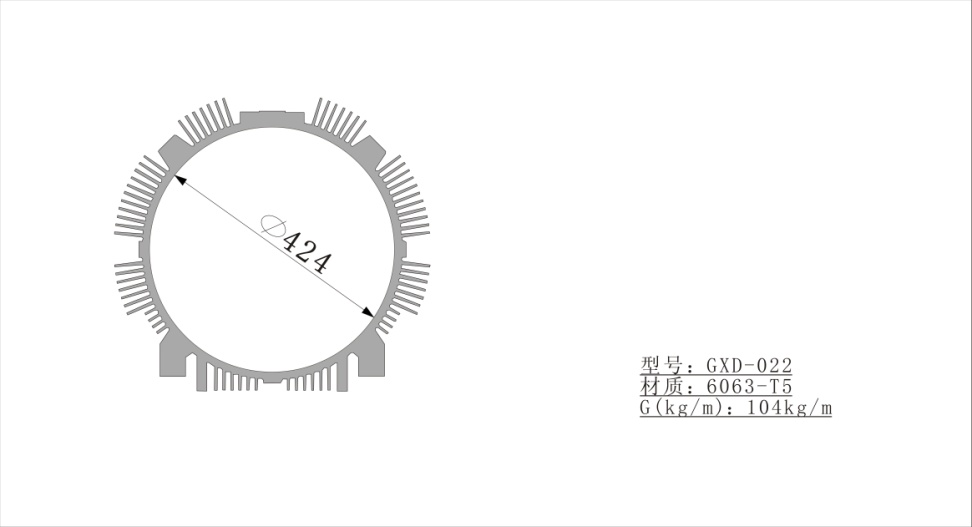

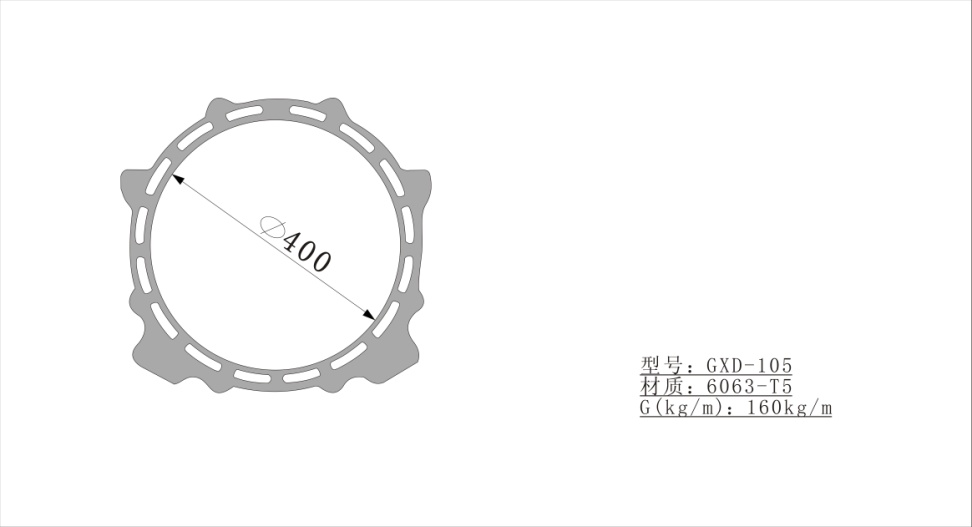

| Chalco-G105 | 160 | 400mm | Chalco-G022 | 104 | 424mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

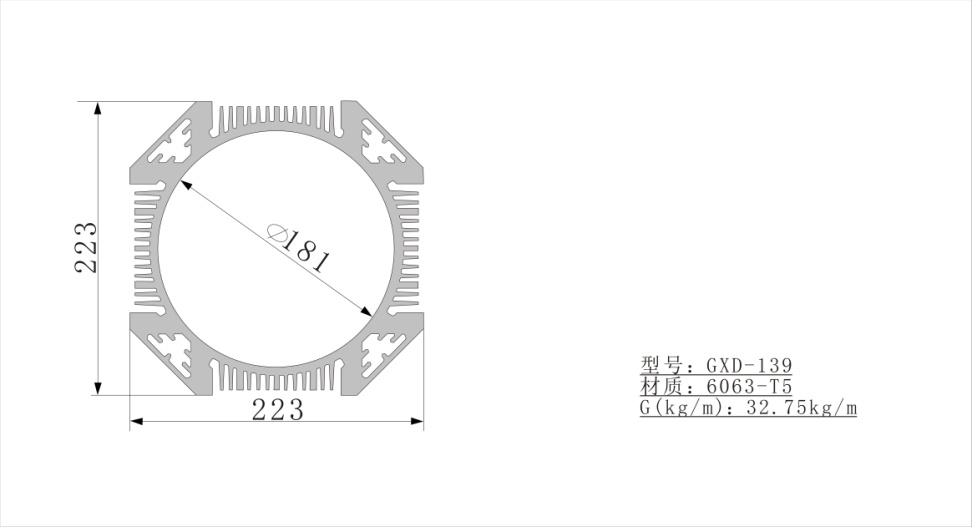

| Chalco-G139 | 32.75 | 181mm | Chalco-G140 | 31.76 | 225mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

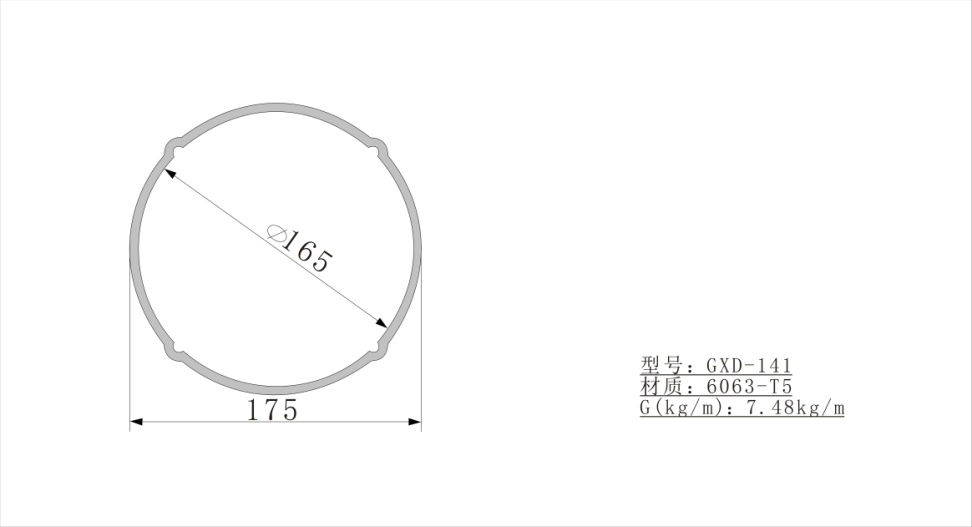

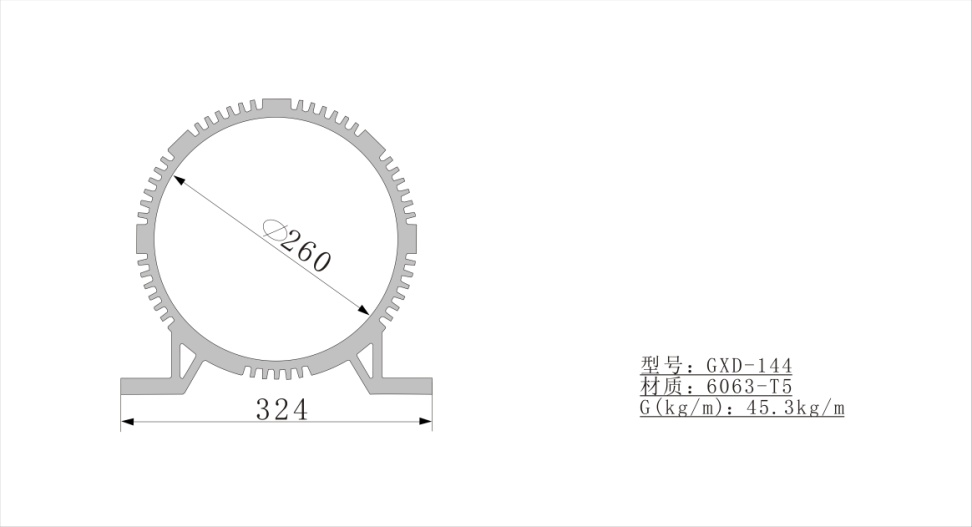

| Chalco-G141 | 7.48 | 165mm | Chalco-G144 | 45.3 | 260mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

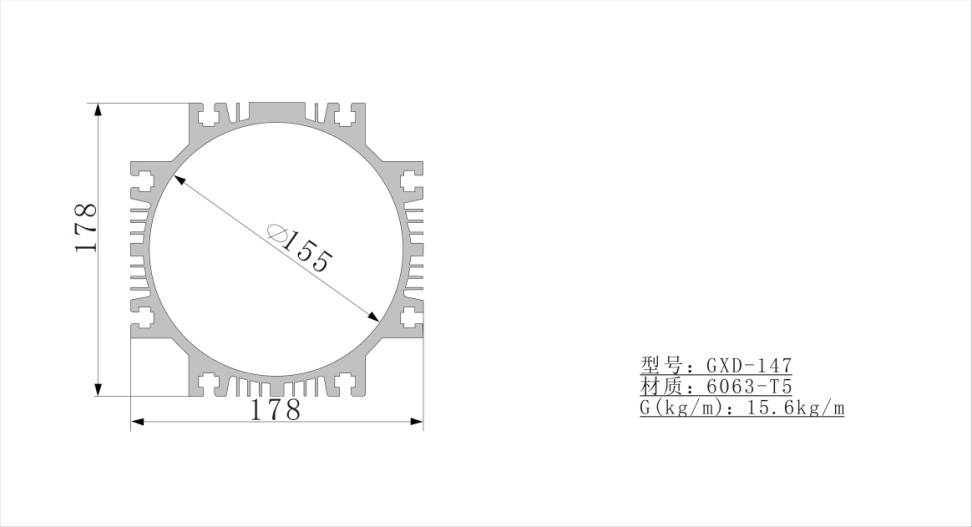

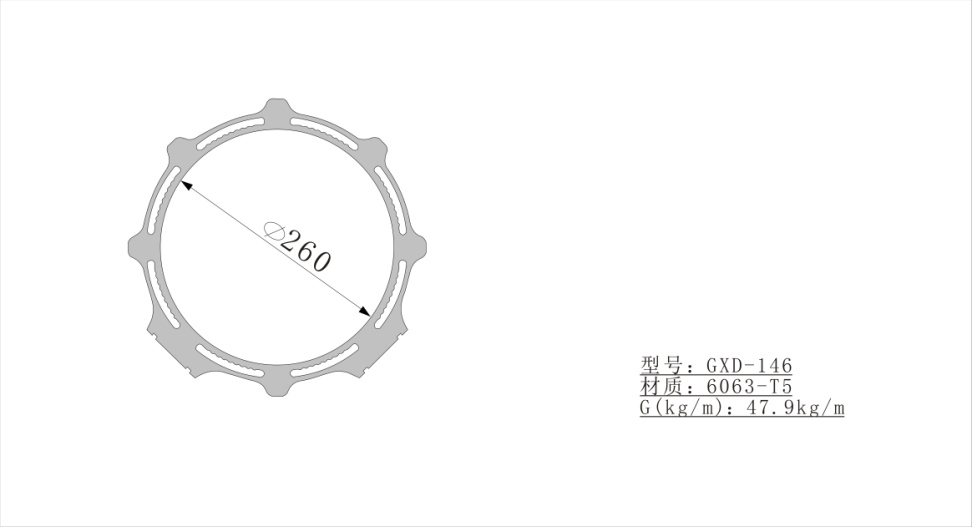

| Chalco-G146 | 47.9 | 260mm | Chalco-G147 | 15.6 | 155mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |
| Chalco-G148 | 220mm | Chalco-G149 | 30.3 | 210mm | |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

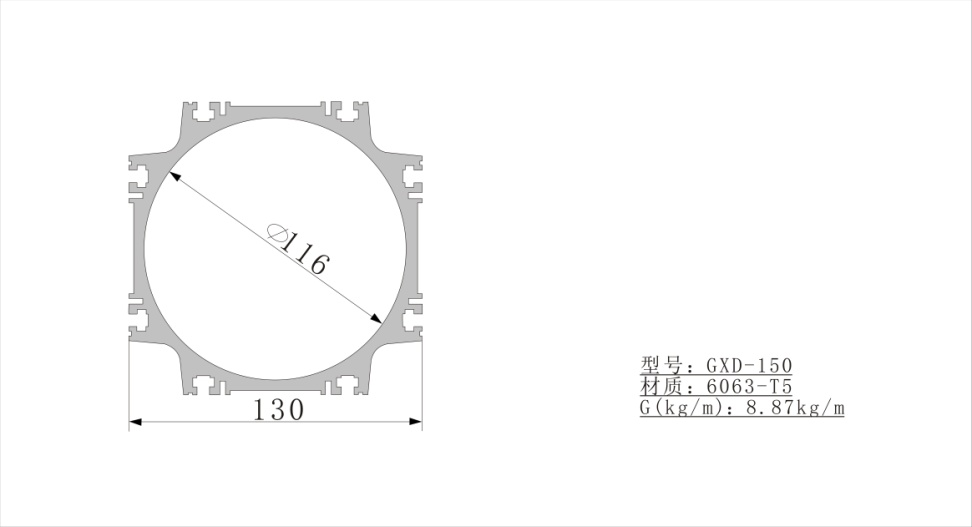

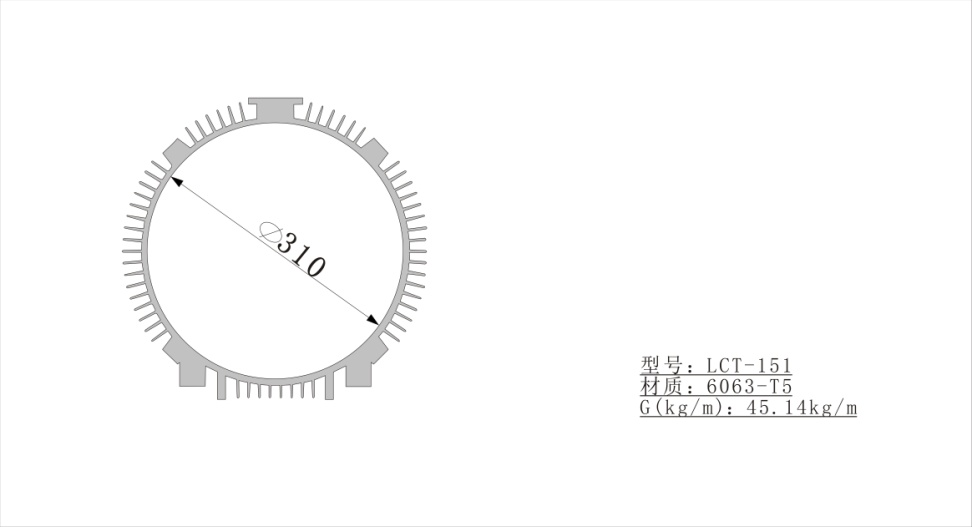

| Chalco-G150 | 8.87 | 116mm | Chalco-G151 | 45.14 | 310mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

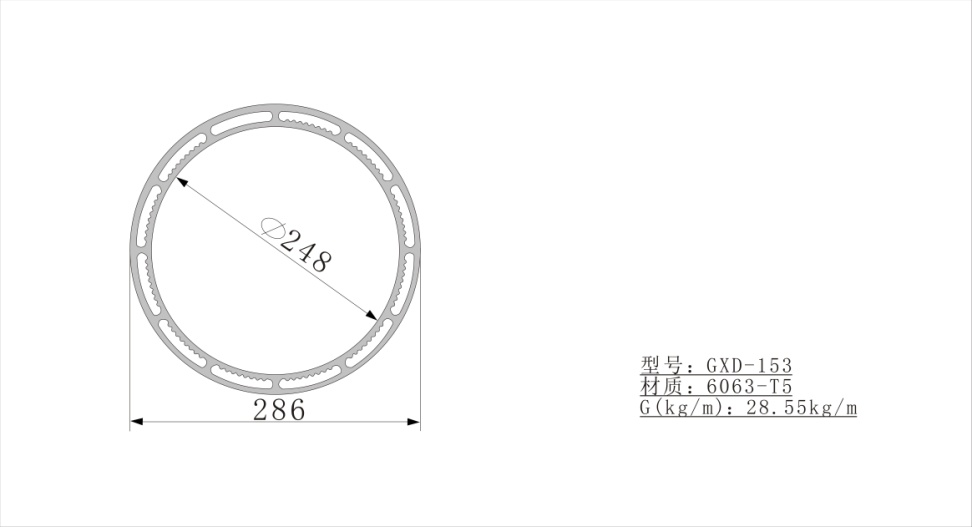

| Chalco-G153 | 28.55 | 248mm | Chalco-G153-1 | 43.73 | 248mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

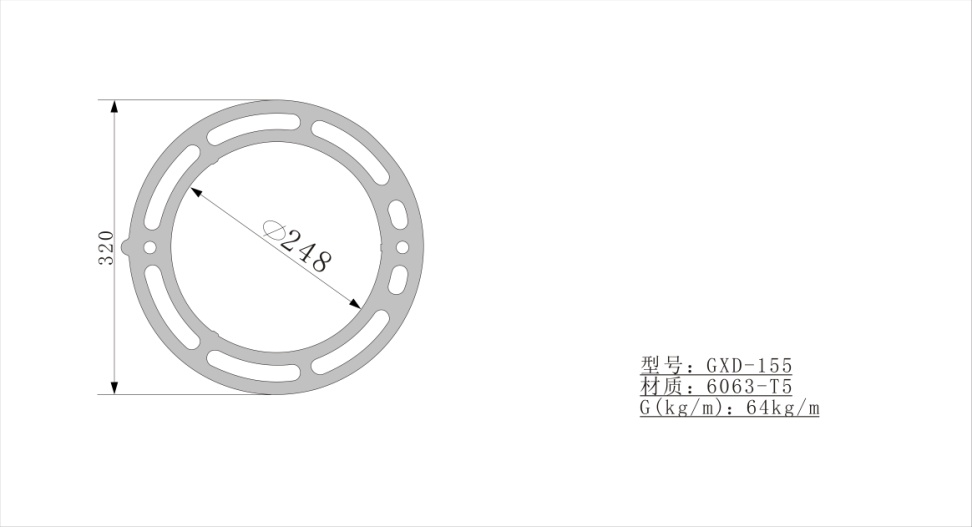

| Chalco-G154 | 43.73 | 181mm | Chalco-G155 | 64 | 248mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

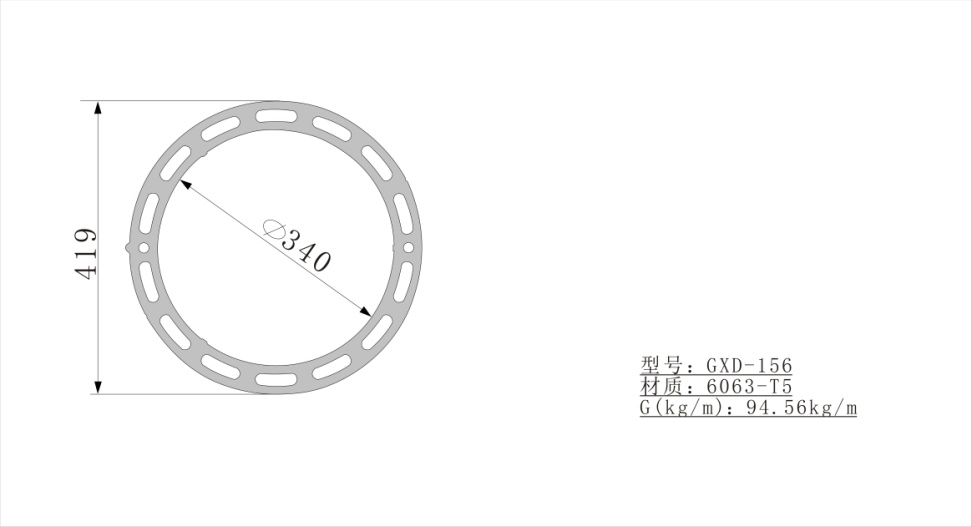

| Chalco-G156 | 94.56 | 340mm | Chalco-G157 | 131.66 | 445mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

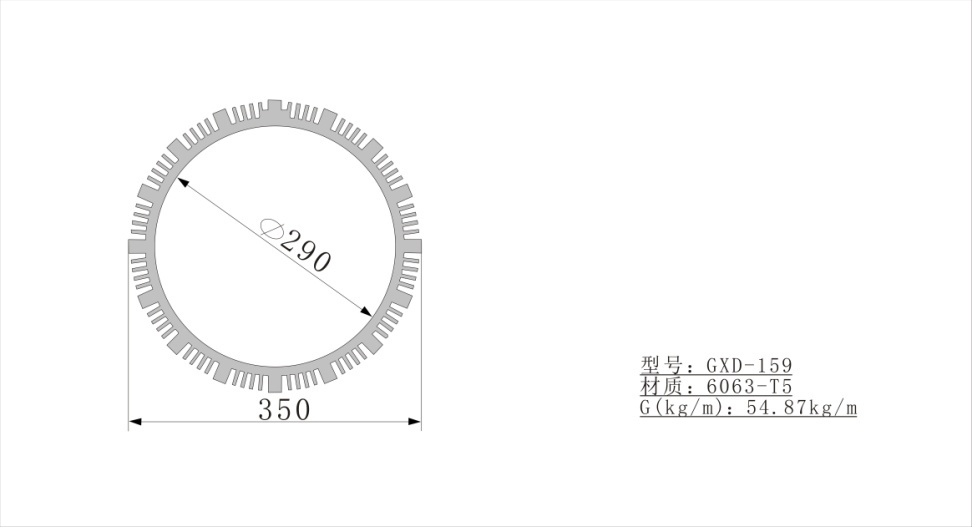

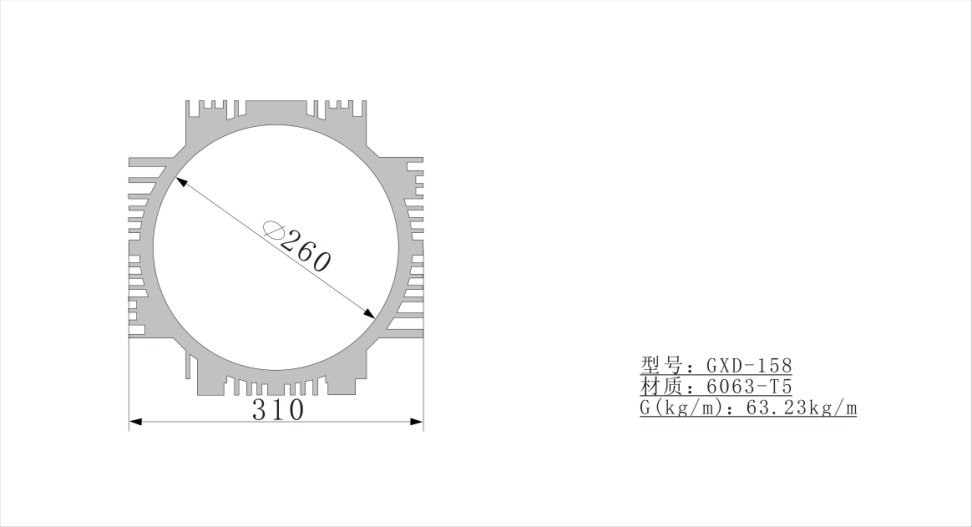

| Chalco-G158 | 63.23 | 260mm | Chalco-G159 | 54.87 | 290mm |
 |
 |
||||
| Drawing No. | Line Density (kg/m) | Inner Diameter | Drawing No. | Line Density(kg/m) | Inner Diameter |

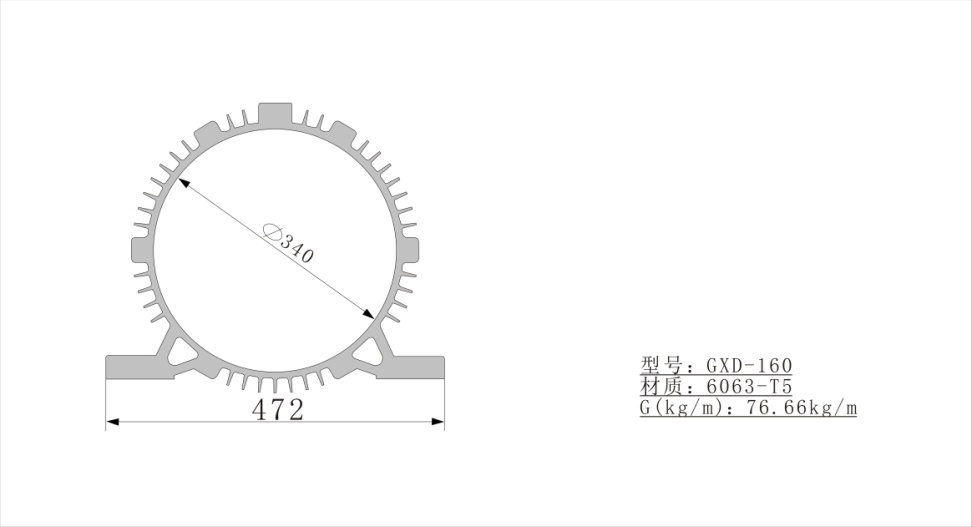

| Chalco-G160 | 76.66 | 340mm | Chalco-G199 | 11.7 | 130mm |
 |
 |
||||
